Gas Spray Filteration Nozzle Stainer

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HENG YUAN
Certification:	ISO9000
Model Number:	HY006

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiate
Packaging Details:	Woden box, Paper box
Delivery Time:	3 - 5 days, according to the quantity
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	20000 pcs / month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Slot Size:	0.3 Mm
Grade:	304	Diameter:	53mm
Length:	115-110mm	Thread Size:	1 1/4 "
Highlight:	53mm Water Filter Nozzle , 0.3mm Water Filter Nozzle

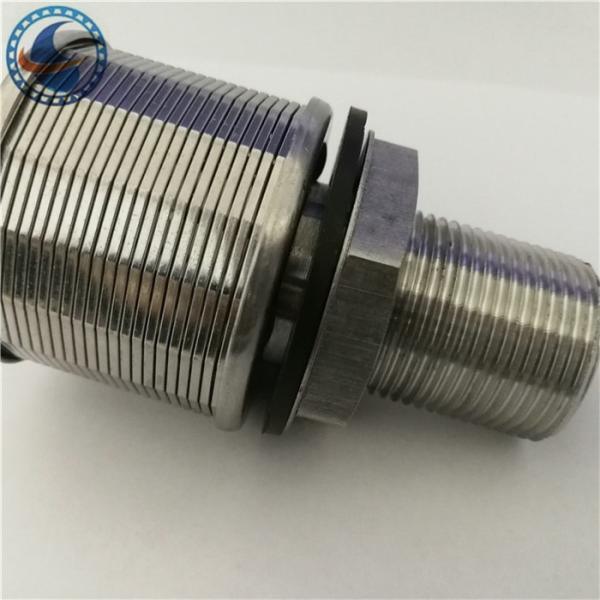

Water / Gas Spray Nozzle Filter Screen Nozzle Stainer

The wedge wire structure nozzle strainers / sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.

Material : Stainless steel 304,316,316L
The different wedge wire sizes and slot sizes can suit different class filtration.
Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots
Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

Product Description:

Product Name	Johnson Water Filter Nozzle
Material	Stainless Steel
Grade	304
Slot size	0.3mm
Diameter	53 mm
Screen Lenth	50 - 55 mm
Total Length	115 - 110 mm
Thread Size	1 1/4 " , 32 mm

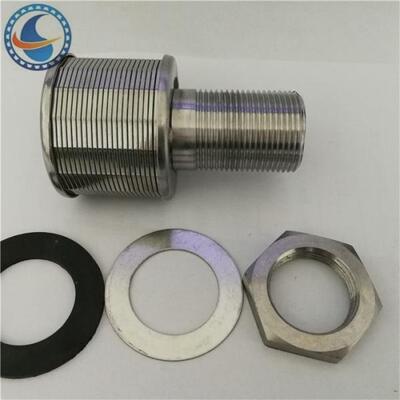

Nutsert	1 PCS, 2 PCS
Gasket	1 PCS steel gasket,1 PCS rubber mat

Use:

Water screen nozzle is American technology.water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.

Regular Specifications:

Type	Slot size	Specifications				Flow filter area 0.2mm slot ( reference)
Type	Slot size	D	H	L	M	Flow filter area 0.2mm slot ( reference)
HY-PT-45-A	0.2-0.5	45	25	90	25	280
HY-PT-45-B	0.2-0.5	45	35	100	25	380
HY-PT-45-C	0.2-0.5	45	45	110	25	550
HY-PT-45-D	0.2-0.5	45	35	55	25	380
HY-PT-45-E	0.2-0.5	45	45	65	25	550
HY-PT-53-A	0.2-0.5	53	35	100	25	450
HY-PT-53-B	0.2-0.5	53	45	110	25	580
HY-PT-53-C	0.2-0.5	53	55	120	32	700
HY-PT-57-A	0.2-0.5	57	35	100	32	530
HY-PT-57-B	0.2-0.5	57	45	110	32	680
HY-PT-57-C	0.2-0.5	57	55	120	32	830
HY-PT-70-A	0.2-0.5	70	40	105	32	650
HY-PT-70-B	0.2-0.5	70	55	115	32	810
