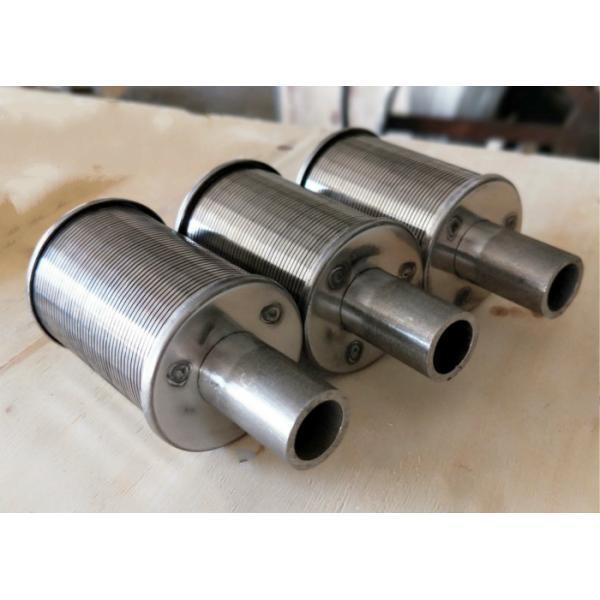

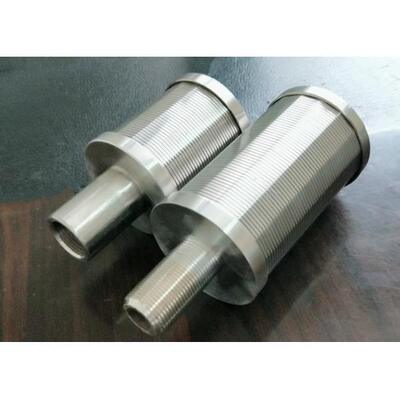

Name: High Precision Johnson Water Filter Nozzle , Stainless Steel Sand Filter Nozzles
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY006
Availability: InStock

Home Products Water Filter Nozzle

High Precision Johnson Water Filter Nozzle , Stainless Steel Sand Filter Nozzles

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HENG YUAN
Certification:	ISO9000
Model Number:	HY006

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiate
Packaging Details:	Woden box, Paper box
Delivery Time:	3 - 5 days, according to the quantity
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	20000 pcs / month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Slot Size:	0.2 Mm
Grade:	316L	Diameter:	57 Mm
Length:	115 - 110mm	Thread Size:	1 1/4"
Highlight:	wedge wire strainer , water screen nozzle

Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser

Johnson Screen Filter Nozzle Product Description:

Product Name	Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser
Material	Stainless Steel
Grade	304
Slot size	0.25mm
Diameter	53 mm
Screen Lenth	45 mm
Total Length	115 - 110 mm
Thread Size	1 1/4 " , 32 mm
Nutsert	1 PCS, 2 PCS
Gasket	1 PCS steel gasket,1 PCS rubber mat

Johnson Screen Filter Nozzle Characteristic:

Stainless Steel 304 Johnson Screen Filter Nozzle Used In Water Distributor is welded with Johnson well screen, thread pipe and steel panel through special welding process. The Johnson well screen is the profile wedge wire screen ,the wire and the support rod is V shape , so the screen filter surface outside is smaller than inside, so that the screen nozzle is not easy to jam. The thread pipe is made by international standard.1 “,1 1/4 “, 2 1/4 “ and so on.

Johnson Screen Filter Nozzle Advantages:

Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser have many advantages as below:
Strong and durable, with long service life.
The gap is even, no leakage of resin, no running material.
High opening rate can meet the requirement of large flow.
The structure is varied and meet different design requirements.

Johnson Screen Filter Nozzle OEM service:

Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser support OEM
Please tell us the specification of the water cap you need and we will help you to process the high quality products.
Custom range
Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
Gap: 0.2-0.25mm, can be according to customer needs.

Johnson Screen Filter Nozzle Use:

Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser is American technology.water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.

Johnson Screen Filter Nozzle Regular Specifications:

Type	Slot size	Specifications				Flow filter area 0.2mm slot ( reference)
Type	Slot size	D	H	L	M	Flow filter area 0.2mm slot ( reference)
HY-PT-45-A	0.2-0.5	45	25	90	25	280
HY-PT-45-B	0.2-0.5	45	35	100	25	380
HY-PT-45-C	0.2-0.5	45	45	110	25	550
HY-PT-45-D	0.2-0.5	45	35	55	25	380
HY-PT-45-E	0.2-0.5	45	45	65	25	550
HY-PT-53-A	0.2-0.5	53	35	100	25	450
HY-PT-53-B	0.2-0.5	53	45	110	25	580
HY-PT-53-C	0.2-0.5	53	55	120	32	700
HY-PT-57-A	0.2-0.5	57	35	100	32	530
HY-PT-57-B	0.2-0.5	57	45	110	32	680
HY-PT-57-C	0.2-0.5	57	55	120	32	830
HY-PT-70-A	0.2-0.5	70	40	105	32	650
HY-PT-70-B	0.2-0.5	70	55	115	32	810
