6-5/8" Low Carbon Galvanized Sand Control Wire Screen Filter For Water Well
Introduction of sand control wire screen filter for water well:
Wire screen filter, also known as the filter pipe, is widely used in oil, gas, water well sand control industry, especially in the water well industry prominent position, widely used in water resources filter screen pipe. Stainless steel screen using full welding production process, the application of special trapezoidal wire winding in a circumferential arrangement of a group of supporting wire welding from.
Features of Sand Control Wire Screen Filter:
1. The application of trapezoidal wire, so that a V-shaped opening is formed between the gaps of the screen tube.
2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire arranged in a circular manner.
3. The winding wire and all supporting wires are connected by electric welding, durable, long working life cycle.
4. According to the actual needs of the design of the support wire longitudinal arrangement and screen tube continuity gap form, so that the screen high compressive performance.
5. The advantages of wire screen filter improve the efficiency and life cycle of Wells.
Sand Control Wire Screen Filter For Water Well parameters:
1. Gap (mm) : 0.10, 0.15, 0.2, 0.25, 0.30 3
2. The opening area is up to 60%.
3. Material: low carbon steel, low carbon steel galvanized, plastic sprayed, stainless steel (304,316, etc.)
4. The length is 5.8 meters to fit container.
5. Outside diameter from 89mm to 477mm
6. Connection type: Welded rings or male/ female threaded connection.
Low Carbon Galvanized Sand Control Wire Screen Filter For Water Well Information:
| Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
| Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L,
Duplex steel etc. |
| Diameter: From 29-1300mm (Normal diameter is in the below table) |
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) |
| Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container) |
| Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3*7mm etc. |
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. |
| Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,
Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,
Architecture & Construction etc. |
| Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tenslie Strength | Collapse Strength | Wrap wire Vee-shaped wire(mm) | Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2*3.5 (Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.0(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.0(Width*height) | ø4.0MM×54 |

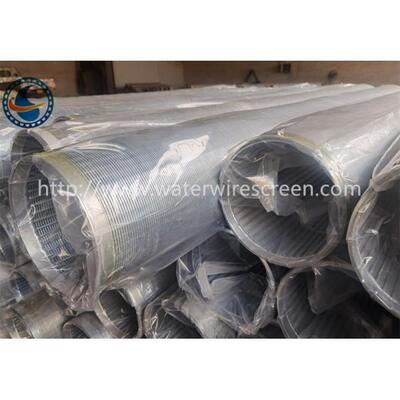

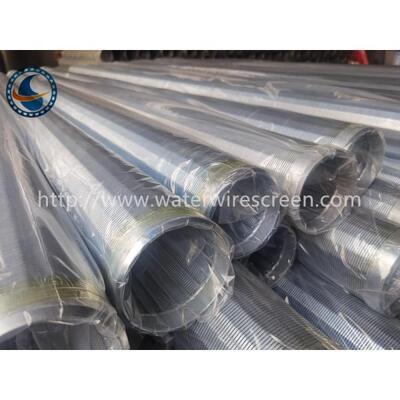

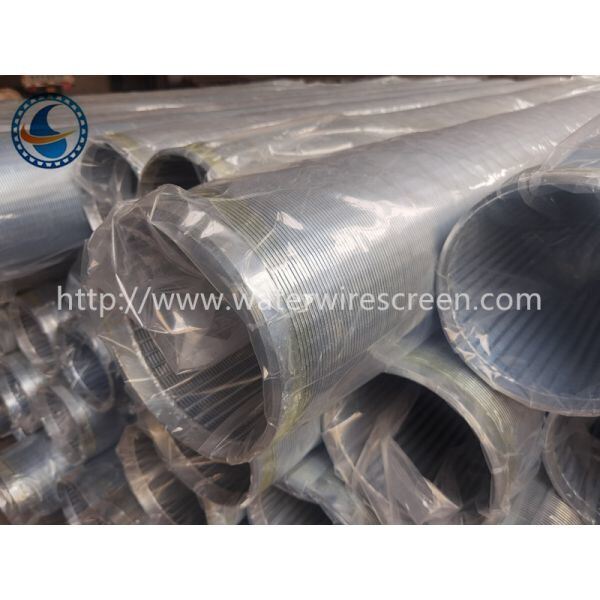

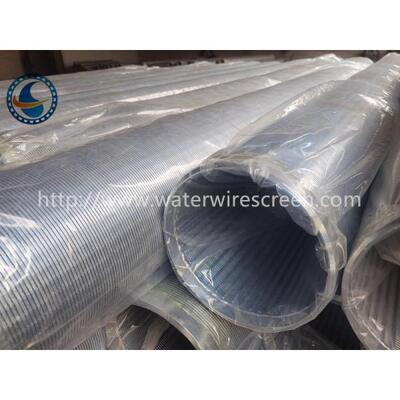

Low Carbon Galvanized Sand Control Wire Screen Filter For Water Well Pictures:
