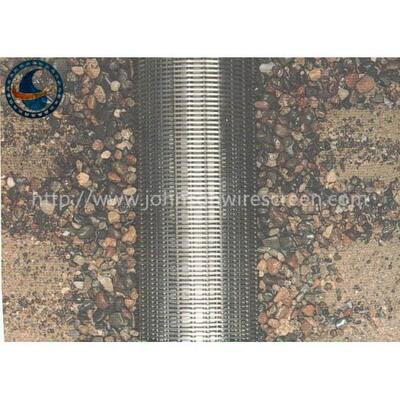

Continuous Slot Johnson Wire Screen Used In Agricultural System
Product Description:

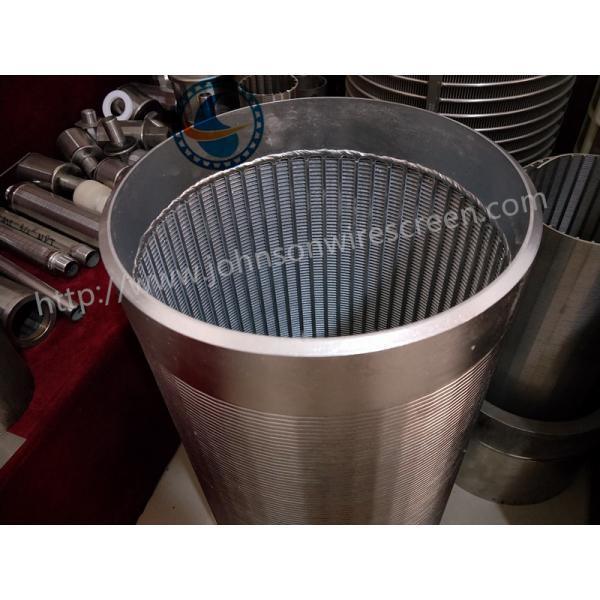

Johnson wire screen is the continuous slot,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.Both the inner and outer screens shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.Each junction of wire/rod contact shall be resistance welded.
The wrapped wire is V shape, and the support rod is round shape.
Filter from outside to inside.
Specificarion:
| Material |
Stainless Steel Or Low carbon galvanized |
| Grade |
SS201, 205, 304, 304L, 316L, Or Low carbon Q195, Q235 |
| O.D |
168mm, 219 mm, 273mm,325mm |
| Size |
6-5/8" 8-5/8", 10-3/4" 12-3/4" |
| Length |
2.9m, 5.8 m |
| Solt size |
0.5mm, 0.75mm, 1.0 mm,1.5mm |
| End connection |
Welded rings Or male/female threaded |
| Wire size |
2*3.5mm, 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm, 3*7mm |
| Support rod |
round wire ø3.0-5.0mm |
Use:
Johnson water well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction
