Johnson Wire Screen For Water Well Drilling / Petroleum Industry
Johnson Wound Water Well Screen Low Carbon Steel Galvanized Material
Wound Profile Wege Wire Johnson Screen Product Description:
Johnson Wound Water Well Screen is manufactured with made by low carbon steel ,first welded and then galvanized.The component of the screen is wedge (V shaped)profile wire and wedge wire or round shaped rods .There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
Wound Profile Wege Wire Johnson ScreenSpecification:
| Material | Low Carbon Steel Galvanized |
| Grade | Q195, Q235 |
| O.D | 219 mm |
| Size | 8-5/8 " |
| Length | 300-6000mm,2.9m,5.8 m |
| Solt size | 1.0 mm |
| End connection | Welded rings |
| Wire size | 93 # |
| Support rod | 120 # |
| Wire shape | V shape |
Wound Profile Wege Wire Johnson Screen Regular Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE (WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Wound Profile Wege Wire Johnson Screen Characteristics:
· Many varied applications in sieving, sorting and separating.
· Wedge Wire surface is self-cleaning
· Various construction types:
· Wedge Wire on round bars for light duty.
· Wedge Wire on fins for medium or heavy duty.
· Grates edged with flat bar or angle.
· Highly polished grates for wet areas, bars or bench tops.
· Heavy grids and support bar systems for absorption vessels.
· Grates and grids made as single or multi-part items.
· Materials to suit applications (Stainless steel 304 or 316, mild steel etc)
Wound Profile Wege Wire Johnson Screen Advantages:
Not easy to jam
The special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Wound Profile Wege Wire Johnson Screen Use:
Johnson Wound Water Well Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.It is mainly used in water well drilling and petroleum industry .Used for filtration of water ,oil and other liquid and gas or solid.

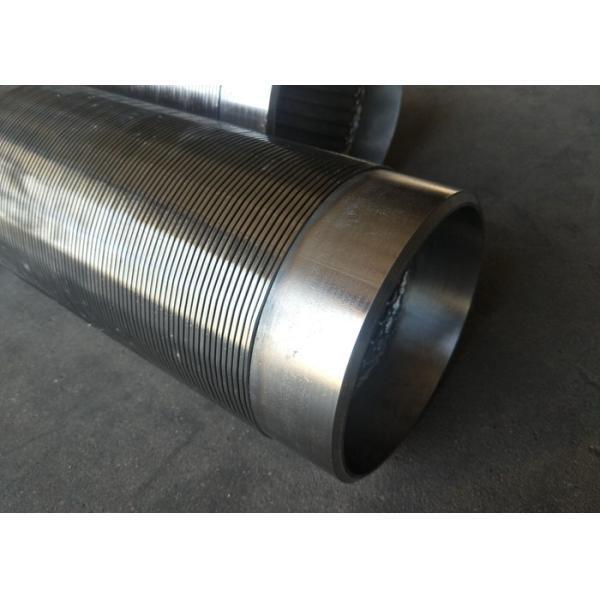

Wound Profile Wege Wire Johnson Screen Pictures:

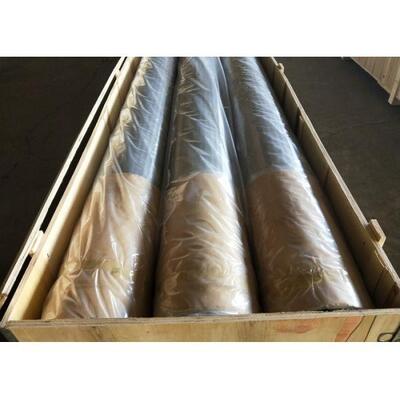

Package:
