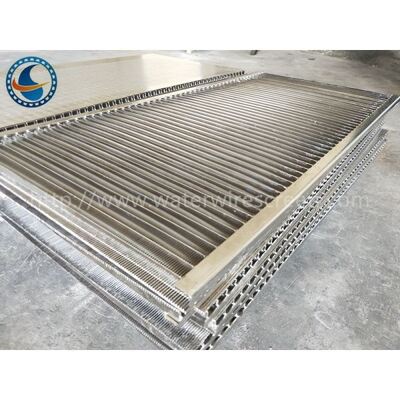

Stainless Steel 304 Wire Wrapped Screen Plate For Papermaking
Stainless Steel Wire Wrapped Screen Plate For Papermaking
Stainless Steel Wire wrapped screen, Wire Wraped Slot Screen, Wedge Wire Mesh, Stainless Steel Slot Screen Sieve Panel For Paper and Pulp, The stainless steel v wire screen plate is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
Wire Wrapped Screen Plate is a welded steel structure, mainly used for filtration, separation and retention media.
1.Material: 304 316 316L stainless steel wedge wire
2.Slot: 0.2mm-5mm
3.Profile wire size: 1x2mm, 1.5x2.5mm, 2x3mm, 3x4mm etc
4.Support bar size: 2x3mm, 3x4mm, 3x5mm etc
5.If you have drawing, please send us.
Wire Wrapped Screen Plate For Papermaking Specification:
| Material | Stainless steel |
| Grade | 304 |
| Dimension | 1000 * 1000 mm, request |
| Slot Size | 1.0 mm |
| Width | up tp 4000mm |
| Length | up to 4000mm |
| Type | Screen plate |
| Wire size | 3*4.6 mm |
| Support rod | 3*4.6mm with flat steel bar |
| Wire shape | V shape |
Wire Wrapped Screen Plate Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Dimension: width up to 4000 mm
Length up to 4000mm
Specification of the wrap wire:1*2 mm, 2*3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Special specification can be made according to your need.
