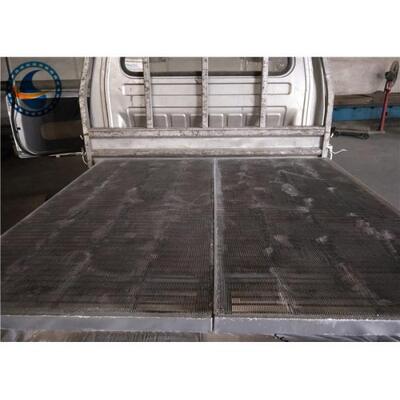

SS 304 Welded Wedge Wire Screen Panels Wear Resistant With High Strength

Strong Structure Wedge Wire Mesh . Welded Johnson Screen Sieve Plate

Product Description:

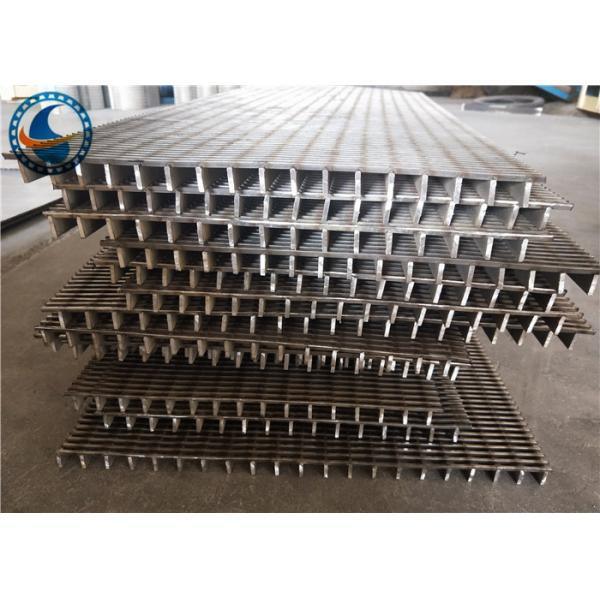

Strong Structure Wedge Wire Mesh . Welded Johnson Screen Sieve Plate is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire. There is a certain distance between each support bar too . The filter surface is smooth, the gap is uniform, and it is not easy to block.

Specification:


Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

                    Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.

Advantages:

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.

Industry:

 Mining machinery:

used for desilting and dewatering of coal preparation plants.

 Wheat tooth machine:

it is suitable for use in wheat tooth mill, floater and drying stove.

Beer machine:

it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.

 Food industry:

the filtration process can be used for food and beverage.

 Aquaculture:

used for farming, cleaning up waste residues from animals.
