10-3/4" Low Carbon Galvanized Sand Control Screens For Deep Well

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HengYuan
Certification:	ISO
Model Number:	O.D 273mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiated price
Packaging Details:	wooden boxes
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1500 pcs/month

Contact Now

Detailed Product Description

Features:	Non-clogging	Name:	Low Carbon Galvanized Sand Control Screen Pipe
Material:	Low Carbon Galvanized	Diameter:	273mm
Length:	5800mm	Slot:	1.0mm
Profile Wire:	3*5mm Vee Wire	Support Rod:	ø5.0mm Roundwire
No. Of Rods:	55 PCS	Technique:	Point Welding
Application:	Filteration	Filter Type:	From Outside To Inside
Ends:	Welded Rings	Weight:	155 KG/piece
Highlight:	Galvanized Sand Control Screens , 273mm sand control screens , 5800mm length sand control screens

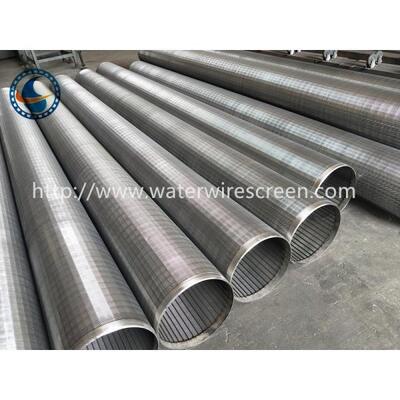

10-3/4" O.D 273mm Low Carbon Galvanized Sand Control Screen Tube For Deep Well

Low Carbon Galvanized Sand Control Screen Tube is made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the pipe.

Low Carbon Galvanized Sand Control Screen Tube Size:

Material:Low carbon galvanized
Diameter:10-3/4" (273mm)
Length:5800mm
Slot:1.0mm
Wrap wire:3*5mm
Support rod:ø5.0mm round wire
Ends:Welded rings

Low Carbon Galvanized Sand Control Screen Tube Normal Sizes:

SIZE	O.D	SLOT	LENGTH	COLLAPSE STRENGTH	TENSILE WEIGHT	WRAP WIRE(WIDTH*HEIGHT)	RODS
(INCH)	(MM)	(MM)	(M)	(BAR)	(TON)	(MM)	(MM)
2003/1/2	88.9	1	3	＞22	10.2	2.3*3.5	3.8MM/22
2004/1/2	114.3	1	3	＞28	11.5	2.3*3.5	3.8MM/22
2006/5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
2006/5/8	168.3	1	5.8	＞33	12.8	2.3*3.5	3.8MM/32
2006/5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
2008/5/8	219.1	1	5.8	＞34	21.9	2.3*3.5	3.8MM/48
2008/5/8	219.1	1	5.8	＞50	38.2	3.0*5.0	4.0MM/48
2008/5/8	219.1	1	5.8	＞60	46	3.2*6.0	5.0MM/48
2010/3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
2010/3/4	273.1	1	5.8	＞60	39.5	3.0*5.0	4.9MM/55
2010/3/4	273.1	1	5.8	＞100	48	3.2*6.0	5.0MM/55
2012/3/4	323.9	1	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1	3	＞80	37.8	3.0*5.0	4.0MM/59

Low Carbon Galvanized Sand Control Screen Tube Characteristics:

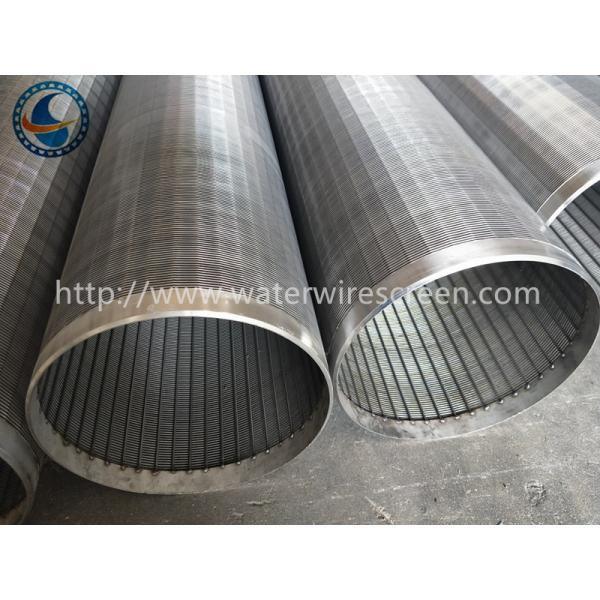

Low Carbon Galvanized Sand Control Screen Pipe is made up with support rod and wedge wire. The wedge wire and support rod are welded for strength and durability. The rod can be round wire, triangular and trapezoid. The wire is triangular(V-shaped wire).
Wedge Wire Sand control Screen has the structure of high open area and accurate slot dimension, Heat-resisting, anti-corrosive, good machinery capability, lasting long safety and reliability and so on. So it is widely used in different kinds of medium filtering.

Low Carbon Galvanized Sand Control Screen Tube Advantages:
High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Good flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap
