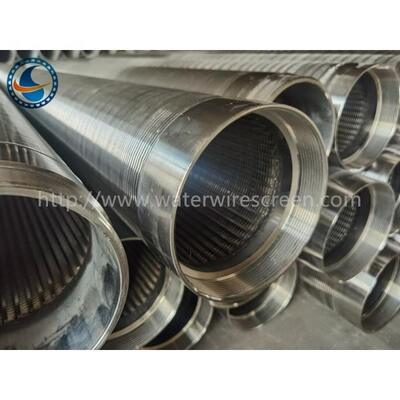

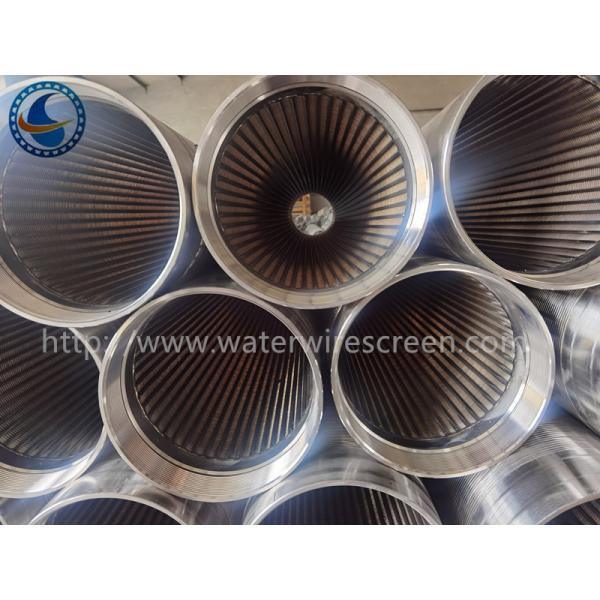

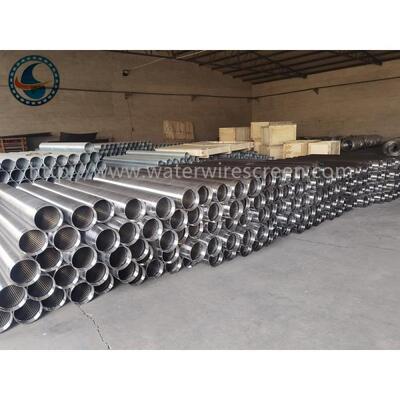

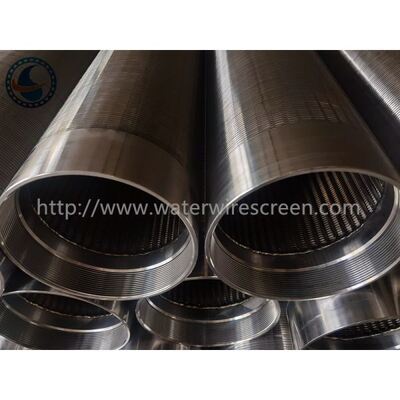

SS 304 Johnson Sand Control Screen For Infilteration Gallery At Intake Well
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country , Hebei Province , China.
Our mainly products are :Johnson Sand Control Screen, Johnson screeen , Water well screen, Rod based wire wrapped screen , Wedge wire screen pipe , Reverse wedge wire screen,Screen nozzle, Water and gas strainer ,Sieve plate ,Slot mesh ,Arc screen ,Wound Screen etc.
Johnson Sand Control Screen For Infilteration Gallery At Intake Well Size:
Materials : AISI 304
Diameter:219mm
Slot:1.0mm
Wrap wire:3*4.6mm Vee wire
Support rod:3*6.2mm Vee wire
Ends:Male/female threaded
Johnson Sand Control Screen Normal Size:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE (WIDTH*HEIGHT)(MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Johnson Sand Control Screen Uses :
This Johnson Sand Control screen is a kind of filtered water tubing with the perforation . it can use with the deep well pump , dive the water pump , also may use in the water-treating equipment , the environmental protection , the sea water transforms into the industrial water and life use water desalination treatment , running water treatment , water softening treatment , the petroleum industry : The petroleum product terminal filters and the chemical acid , the alkali liquid filters , the ethyl alcohol and so on the organic solution recycling filters.
Johnson Sand Control Screen Advantage:
1. The largest possible open area consistent with strength requirements.
2. Openings should be uniformly arranged so that the water flowing from the formation can enter the screen directly.
3.A design that allows the entire formation to be reached during development.
