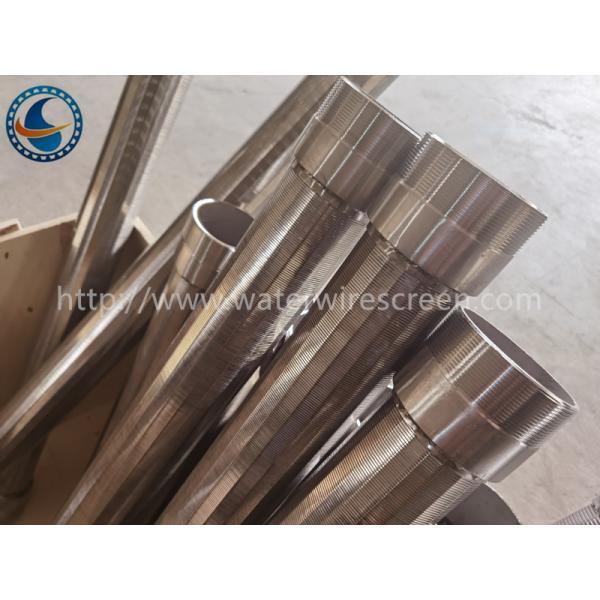

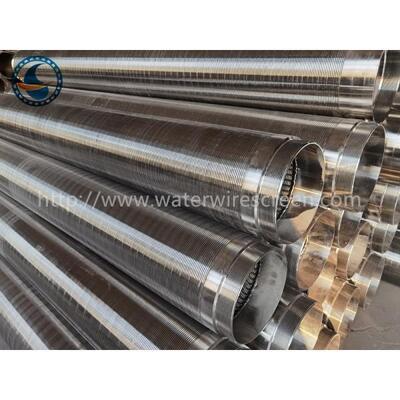

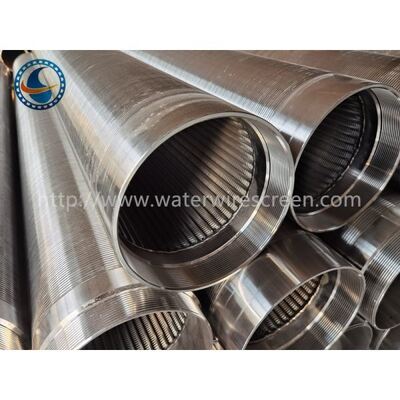

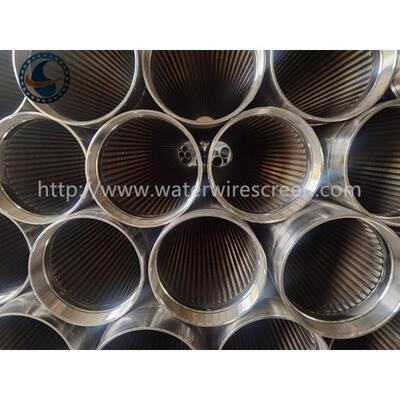

AISI 304 6-5/8" Diameter Profile Wire Sand Control Screen With 0.04" Gap
Profile Wire Sand Control Screen Description:
Johnson strainer,Johnson filter,water well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
·Water Well
·Waste Water Treatment
.Water supply systems
·Coal & Mine
·Food Processors & Beverage Screens
·Environmental protection
·Refining & Petrochemical
·Architecture & Construction
Profile Wire Sand Control Screen Specificarion:
| Name | Profile Wire Sand Control Screen |
| Material | Stainless steel |
| Grade | 304 |
| O.D | 168mm |
| Size | 6-5/8" |
| Length | 2000mm |
| Solt size | 1.0 mm |
| End connection | Male/female threaded |
| Wire size | 2*3.5mm |
| Support rod | ø3.8mm round wire |
| Wire shape | Vee shaped wire |
Profile Wire Sand Control Screen Regular Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Profile Wire Sand Control Screen Advantages:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
