Name: Slotted Cylindrical Wedge Wire Filter Basket Strainer 316l Stainless Steel
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY092004
Availability: InStock

Home Products Wedge Wire Screen Pipe

Slotted Cylindrical Wedge Wire Filter Basket Strainer 316l Stainless Steel

Product Details:

Place of Origin:	Hengshui City,Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO,CIQ,CE, FORM E etc
Model Number:	HY092004

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Name:	Slotted Wedge Wire Cylindrical Screen Basket Strainer	Material:	Stainless Steel 316L
Diameter:	400mm	Length:	650mm
Slot Size:	0.4mm	Wire:	2.3*2.7mm Vee-wire
Support Rod:	3*3.6mm Vee-wire	Package:	Iron Box
End Connection:	4" Female Threaded	Surface:	Polished
Highlight:	cylindrical wedge wire filter , 316l stainless steel wedge wire filter , 316l stainless steel wedge wire mesh

SS 316L Slotted Wedge Wire Cylindrical Screen Basket Strainer

Slotted Wedge Wire Cylindrical Screen Basket Strainer are received by simultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction.

This technology allows to provide welded profile wire screens for applications where high precision of the screen together with high strength is required.

Thanks to the newest welding technology we can provide:

1. Optional distance between support wires

2. Very precise and repeatable slot

3. Screens in accordance to special requests of our clients.

Slotted Wedge Wire Cylindrical Screen Basket Strainer Normal Specification:

Name	Slotted Wedge Wire Cylindrical Screen Basket Strainer
Material	Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire	1.0 2.0 mm, 1.52.0mm, 1.52.5mm, 23mm, 24mm, 2.23.5mm 2.24mm, 2.24.5mm, 34mm 34.6mm etc
Support Rods	23mm, 34.6mm, 35mm, 36mm, 4*7mm
Round	From 2.5mm to 6.0mm
Slot Size	0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length	Max 6 meter
Pipe diameter	25mm to 1300mm
Screen Ends	Plain Beveled ends, male/female threaded, flange or close up.

Slotted Wedge Wire Cylindrical Screen Basket Strainer Application:

1: Filtration and separation of precious metal catalyst in petrochemical and coal chemical hydrogenation reaction;

2: Filtration of high temperature gas and corrosive liquid in the field of nuclear power, pharmaceutical and power plants;

3: Filtration of organic solvents and dyes in the chemical industry;

4: High temperature fly ash filtration in coal gasification project;

5: Filtration of beverage, beer, mineral water and sugar in food and beverage industry;

6: Mechanical industry in hydraulic oil, lubricating oil filtration;

7: Liquid crystal, chemical fiber and film in the high polymer filtration purification.

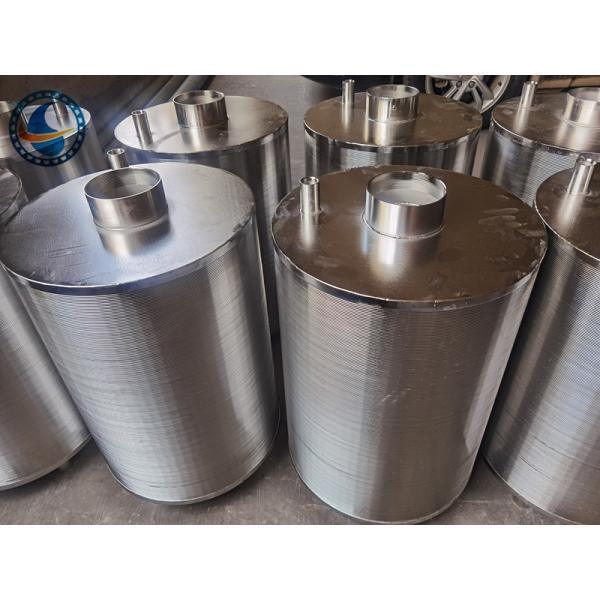

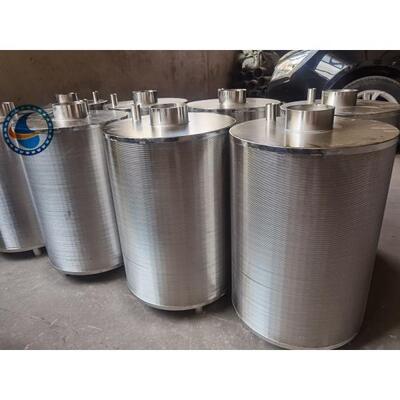

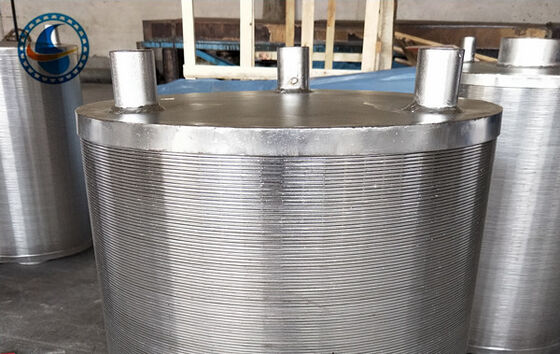

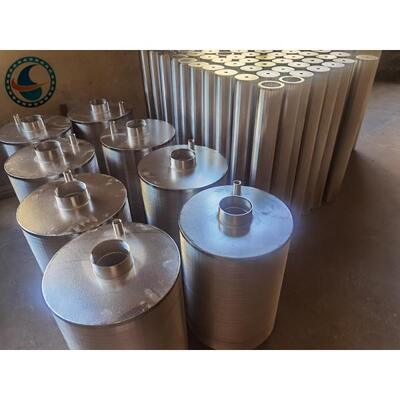

Slotted Wedge Wire Cylindrical Screen Basket Strainer Pictures:

Slotted Cylindrical Wedge Wire Filter Basket Strainer 316l Stainless Steel 0

Slotted Cylindrical Wedge Wire Filter Basket Strainer 316l Stainless Steel 1
