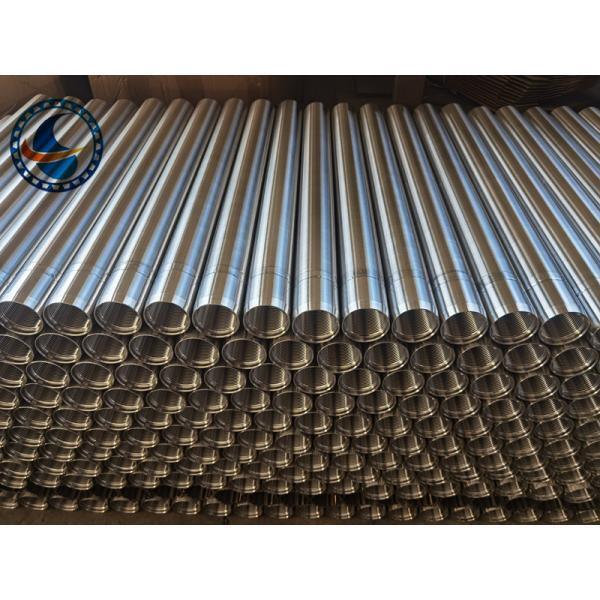

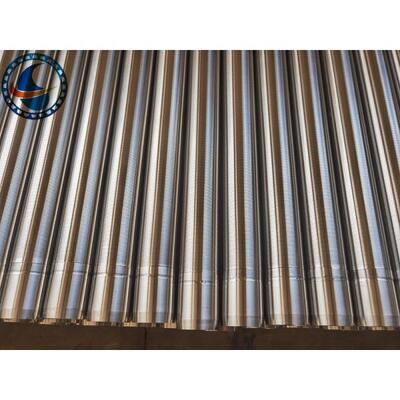

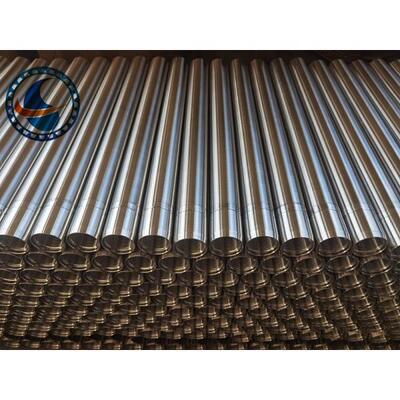

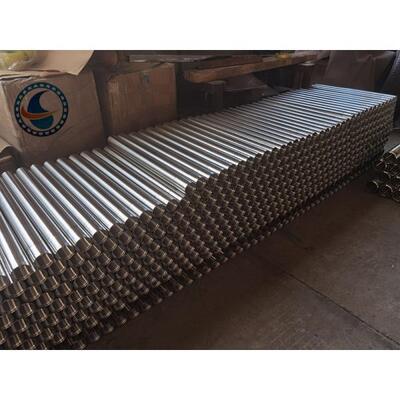

Name: SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY062404
Availability: InStock

Home Products Wedge Wire Screen Pipe

SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface

Product Details:

Place of Origin:	Anping, Hebei , China
Brand Name:	Hengyuan
Certification:	ISO, CIQ, CE, SGS
Model Number:	HY062404

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	plastic film in contaciner or woonen boxes
Delivery Time:	7 days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 meters per day

Contact Now

Detailed Product Description

Name:	Oil Sand Control Wire Wrapped Screen Pipe	Material:	Stainless Steel 316L
Slot:	0.3mm	End Connection:	Welded Rings
Filter Type:	From Outside To Inside	Standard Length:	5.8m
Wire Shape:	2.28*3.56mm V Shaped	Support Rod:	3*4.6mm V Wire
Open Area:	11.6%	Surface:	Polished
Highlight:	316L Oil Sand Control Pipe , Wire Wrapped Oil Sand Pipe , Polished Surface Oil Sand Pipe

SS316L Oil Sand Control Wire Wrapped Screen Pipe

Oil Sand Control Wire Wrapped Screen Pipe also be named: Johnson screen, Johnson well screen, Wedge wire screen,Wound screen, Wire wrapped wire, Water well screen, Countinuous slot well screen, Wedge wire mesh, Wedge wire screen panel, Sand control screen,Wedge wire screen pipe, Wedge wire screen tube, Rotary filter drum,Downhole slotted tube, Taper steel tube, Stainless steel screen tube,Galvanized screen, Wedge wire slot tubes, Wire screen cylinder

Product Name	Oil Sand Control Wire Wrapped Screen Pipe
Material	Stainless steel 304,316L, 321, 904L, Duplex steel 2205,2507 etc.
Length	Upto 6 meters
Standard	SY/T5182-2008
Diameter	From 29-1300mm
Ends	Welded rings, Male/female threaded, Flange, Closed up etc.
Slot size	0.025-100 mm
Surface	Polish
Wrapped wire	12mm, 1.22mm, 1.52mm, 23mm, 23.5mm, 2.23.5mm, 3*4.6mm
Support rod	23mm,34.6mm VEE wire or ø2.5-6.0mm round wire

Oil Sand Control Wire Wrapped Screen Pipe Normal Size:

Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tenslie Strength	Collapse Strength	Wrap wire (Width*height)(mm)	Support rod (mm)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5 VEE WIRE	ø3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5 VEE WIRE	ø3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5 VEE WIRE	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5 VEE WIRE	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0 VEE WIRE	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5 VEE WIRE	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0 VEE WIRE	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0 VEE WIRE	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5 VEE WIRE	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0 VEE WIRE	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0 VEE WIRE	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0 VEE WIRE	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0 VEE WIRE	4.0MM/59

Oil Sand Control Wire Wrapped Screen Pipe Usage:

Oil Sand Control Wire Wrapped Screen Pipe can be used in petroleum, gas and water well, filling with gravels, can prevent the sand and protect the equipment in the well and underground, prolong the life span. It has the characteristics of easy operation, fine permeability, unaffected by temperature, long life service, safety and reliability, low comprehensive cost and etc.
