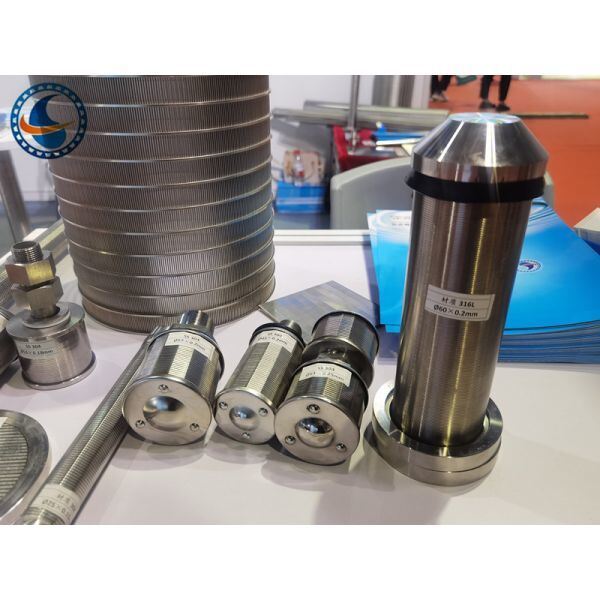

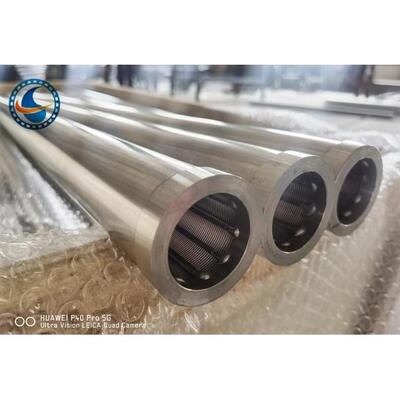

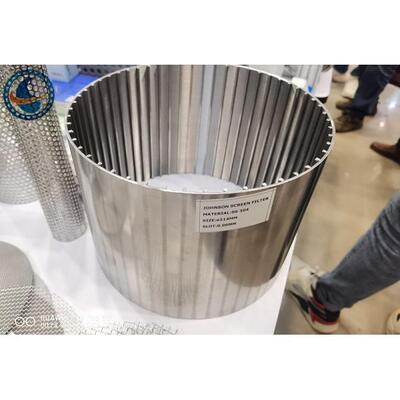

Corrosion Resistant Wedge Wire Screen Cylinders

Large Image : Corrosion Resistant Wedge Wire Screen Cylinders

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HengYuan
Certification:	ISO, CIQ, CE, FOR M E etc
Model Number:	HY-112

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	100USD/PC
Packaging Details:	wooden boxes or customized.
Delivery Time:	7 days or based on the quantity
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000pcs /month

Contact Now

Detailed Product Description

Features:

Non-clogging ,anti-corrosion

Name:

Rewind Wrapped Wedge Wire Screen

Material:

Stainless Steel 201,304,316L Etc.

Technique:

Welding

Highlight:

wedge wire screen cylinders

wedge wire mesh

Corrosion Resistant Wedge Wire Screen ,From Inside To Outside Filter Type

Rewind Profile Wire Wrapped Wedge Wire Screen Introduction:

1: Material: stainless stee:201,304,316L

2: Technique: welding

3: Features: non-clogging ,anti-corrosion

4: Application: filtration

Reverse Profile Wire Wrapped Wedge Wire Screen Basic Parameters:

Wedge Wire Johnson Screen Filter
Specification (Profile wire):		Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0
Specification (support rods):		Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
Slot size		0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request.
Material:		Stainless steel 304, 304L, 316L ,321 etc.)
Length		Upto 4 meters
Diameter		29-1200mm
Screen ends		Plain beveled ends, male/female threaded, flange, close up.
Other sizes available on request.
Advantage	Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs.
