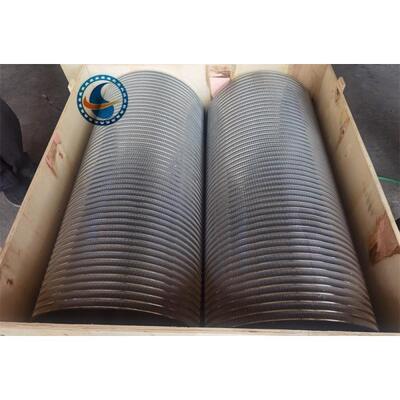

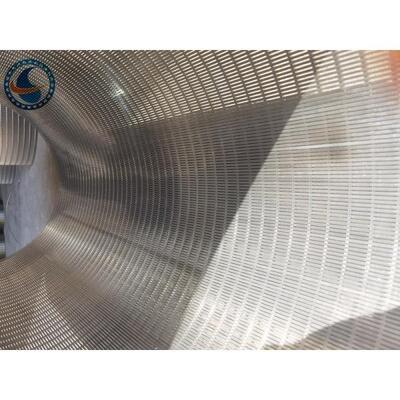

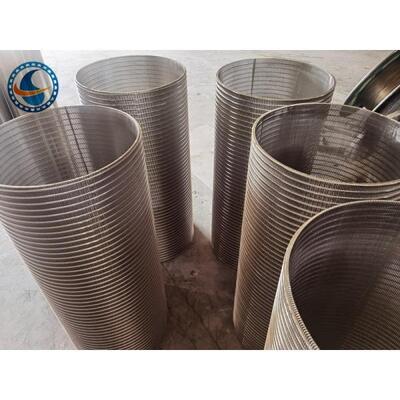

Stainless 304 25mm Dia Cylindrical Wedge Wire Screens Solid Liquid Separation

Large Image : Stainless 304 25mm Dia Cylindrical Wedge Wire Screens Solid Liquid Separation

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	ISO, SGS, CIQ,,CCPIT,CO,FORM E
Model Number:	HY102505

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pieces
Price:	USD 30-100 per Meter
Packaging Details:	Plastic film
Delivery Time:	7-15 work days
Payment Terms:	D/A,D/P,L/C,T/T,Western Union,MoneyGram
Supply Ability:	1500 Meters Per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel 304	Slot Size:	2.0mm
Length:	800mm	Type:	Slot
Wire Shape:	V Shape	End Connection:	Flange/none/thread /coustomization
Usage:	FIlter/back Wash	Filter Type:	From Inside To Outside
Highlight:	stainless 304 cylindrical wedge wire screens , 25mm dia cylindrical wedge wire screens , solid liquid separation wedge screen filter

Stainless 304 Solid-liquid Separation Wedge Wire Sieve Cylinder

1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability.

Wedge Wire Sieve Cylinder Information:

Name: Wedge Wire Screen,Johnson screen,Water wire screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter, Wedge wire screen pipe, Rotary filter drum.

Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc.

Diameter: From 25-1300mm

Slot: From 0.025-100mm

Length: From 100-6000mm

Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc.

Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm

Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Wedge Wire Sieve Cylinder Application:

The product is especially suitable for waxy oil, asphalt, diesel, beer, and high viscosity oil.

It is widely used in electric power industry, natural gas well, petrochemical industry,chemical industry, mining, paper making, environmental protection, metallurgy, food, sand control, Coarse filtration and fine filtration engineering for water treatment.
