Name: Deep Low Carbon Galvanized Water Well Screen 100 Bar Collapse Strength Od 219mm
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 219mm
Price: 65.00 USD
Availability: InStock

Home Products Wire Wrapped Screen

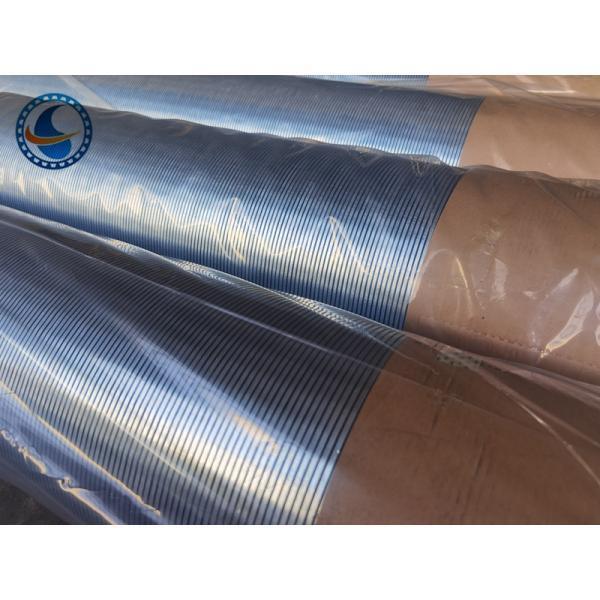

Deep Low Carbon Galvanized Water Well Screen 100 Bar Collapse Strength Od 219mm

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	ISO, SGS, CIQ,,CCPIT,CO,FORM E
Model Number:	219mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pieces
Price:	USD 30-100 per Meter
Packaging Details:	Plastic film
Delivery Time:	7-15 work days
Payment Terms:	D/A,D/P,L/C,T/T,Western Union,MoneyGram
Supply Ability:	1500 Meters Per Week

Contact Now

Detailed Product Description

Name:	Water Well Screen	Material:	Low Carbon Galvanized
Diameter:	219mm	Slot Size:	0.75mm
Length:	5.8m	Wire:	3*6.5mm
Support Rod:	ø4.2mm	No. Of Rods:	48NOS
Ends:	Bevel Welded Rings	Usage:	Water Well /oil Well /filter
Weight:	147KG/piece	Use:	In Water Wells For Sand Control
Highlight:	low carbon galvanized deep well screen , 0.75mm slot size water well screen , od 219mm water well screen

100bar Collapse Strength OD219mm Deep Well Water Well Screen

A Water Well Screen is an engineered device used in many water wells to help maintain a good water supply from the aquifer and allow for long-term satisfactory operation of the well. Water wells are constructed in either unconsolidated materials such as sand and gravel or comparatively hard and (usually) stable bedrock. Water well screens are installed in wells where the zone containing the water for the well (the aquifer) is comprised of loose or unstable material. The water well screen prevents rock fragments from entering the well, helps support the wall of the well and allows water to enter. Silt or sand particles may cause excessive abrasion and early failure of the well pump and/ or plugging of equipment in the home. In addition, sand may accumulate in a well and block off water-bearing zones.

Water Well Screen Noraml Sizes:

Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Wedge wire screen,Oil screen.
Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L,Duplex steel etc.
Diameter: From 29-1300mm (Normal diameter is in the below table)
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container)
Wrap wire:23.5mm,2.23.5mm,2.24.5mm,34.6mm,35mm,36mm,36.5mm,3.26mm,4*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tenslie Strength	Collapse Strength	Wrap wire Vee-shaped wire(mm)	Support rod Round wire(mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.23.5 (Widthheight)	ø3.8MM×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.23.5(Widthheight)	ø3.8MM×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.23.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.23.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	0.63	5.8	＞83	45	3.26.0(Widthheight)	ø6.0MM×32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.33.5(Widthheight)	ø3.8MM×48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.05.0(Widthheight)	ø4.0MM×48
8-5/8	219.1	1.0	5.8	＞60	46	3.26.0(Widthheight)	ø5.0MM×48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.23.5(Widthheight)	ø4.0MM×55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.04.6(Widthheight)	ø4.8MM×55
10-3/4	273.1	1.0	5.8	＞100	48	3.26.0(Widthheight)	ø5.0MM×55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.05.0(Widthheight)	ø4.0MM×56
14	355.6	1.0	2.9	＞80	37.8	3.05.0(Widthheight)	ø4.0MM×59
16	426	1.0	2.9	＞80	37.5	3.05.0(Widthheight)	ø4.0MM×54

Water Well Screen Delivery details :

1. For small quantity, shipped by courier.Tracking number will be emailed to you after order has been shipped.
2. For large quantity, shipped by air or by sea. (According to your request)
Will send the documents to you timely.
