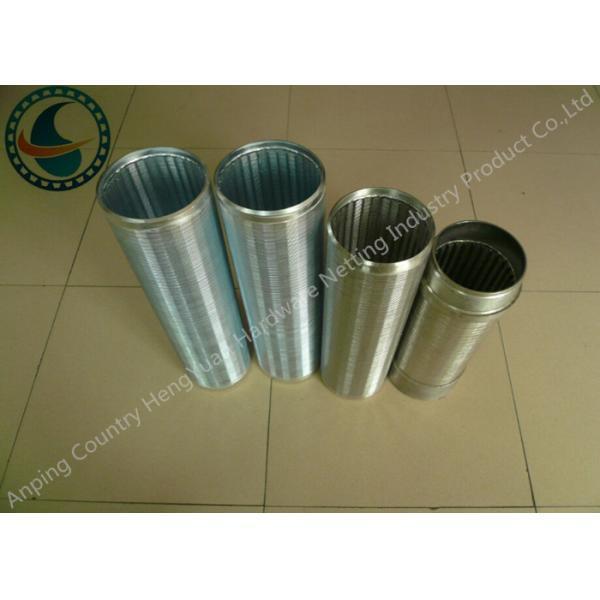

Johnson Type 200Bar Wire Wrapped Screen Pipe For Waste Water Treatment System
Johnson wire wrap screen is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.
Specifications of stainless steel wedge wire screens :
Slot size (mm): 0.25, 0.5, 1.0, 1.5, 2.0mm, or other slot as your request.
Open area: up to 90%
Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.)
Length:2.9m or 5.8m to fit container
Diameter: ranging from 29 to 1300mm
End connection: threaded coupling or welded end
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot (mm):0.5, 0.75, 1.0, 1.5, 2.0 in usual
Features of Johnson wire wrap screen
• They are non-clogging
• Self-supported and rigid
• Very long lifetime
• Reliable and consistent filtration rating
• All metallic construction (non-metallic also possible like PP)
• Easy to clean smooth filtering surface
| Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |
stainless steel wire wrap screens by HengYuan has a high open area compared with other screen media, then this kind of water well screens allows lower entrance velocity and higher flow rates through the screen.
Stainless steel wedge wire screens give continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening.
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country , Hebei Province ,China .
Our mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen , water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen , screen nozzle /water and gas strainer , sieve plate , slot mesh , ARC screen , header and hub laterals & hub radial laterals , pipe base screen etc .
