Name: Continuous Slot Opening Wire Wrapped Screen With High Abreaction Resistance
Brand: Anping County JingXiu Filter Co.,Ltd.
SKU: HY-55
Availability: InStock

Home Products Wire Wrapped Screen

Continuous Slot Opening Wire Wrapped Screen With High Abreaction Resistance

Product Details:

Place of Origin:	Anping, Hebei, China
Brand Name:	HengYuan
Certification:	ISO,CIQ,SGS,CE
Model Number:	HY-55

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiated price
Packaging Details:	wooden boxes
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1500pcs/month

Contact Now

Detailed Product Description

Features:	Non-clogging	Name:	Closed Up Top And Flange Bottom Wedge Wire Mesh
Material:	Low Carbon Galvanized ,stainless Steel	Length:	10-3000mm
Diameter:	29-1200mm	Technique:	Point Welding
Application:	Filteration	Package:	Wooden Boxes
Highlight:	water well sand screen , wire wrapped pipe

Stainless Steel 304 Wire Wrapped Screen V Shape High Abreaction Resistance

Wire wrap screen Product introduction

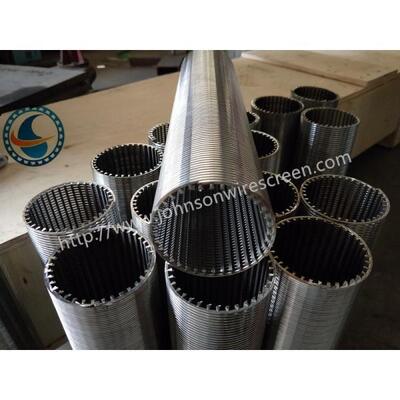

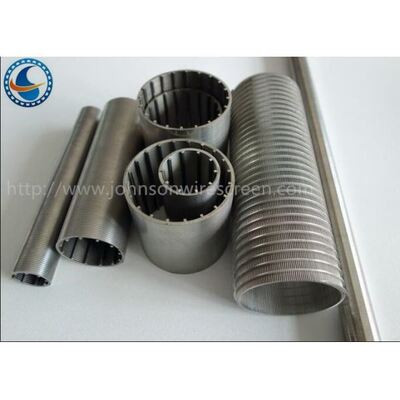

1: Wire wrap screen is manufactured by wrapping a profile wire cylindrical around longitudinal placed support rods creating a V-shaped nonclogging slot opening.

2: The continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer).A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3: A uniform and efficient well development due to the continuous slot opening.

Wire wrap screen specification:

Diameter(mm)	Length(mm)	Slot(mm)	Type of end connection
29-1200	1000,2000,3000,4000	0.05-100	Welded rings,flange,closed up, male/female threaded,open ends
Explanation	Besides above specification of screen pipe, we also can act according to the customer’s request .
