Name: Reversed Profile Slotted Wedge Wire Pipe Stainless Steel 304
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY112303
Price: 125.00 USD
Availability: InStock

Home Products Reverse Wedge Wire Screen

Reversed Profile Slotted Wedge Wire Pipe Stainless Steel 304

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	CE,ISO,CIQ,CO,FORM E,CCPIT
Model Number:	HY112303

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	USD 50-200 per piece
Packaging Details:	Wooden box
Delivery Time:	5-8 work day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	More than 20 PCS per day

Contact Now

Detailed Product Description

Name:	Reversed Profile Wire Slotted Wedge Wire Tube	Material:	Stainless Steel 304
ID:	600mm	Length:	3000mm
Slot:	1.0mm	Wire Size:	2*3.5mm Vee Wire
Support Rod:	3*5mm Vee Wire	Distance Of Rods:	30mm
Filter Type:	FITO	Surface:	Polished
Highlight:	slotted wedge wire pipe , reversed profile wedge wire pipe , stainless steel 304 wedge wire pipe

Stainless Steel Reversed Profile Wire Slotted Wedge Wire Tube

Reversed Profile Wire Slotted Wedge Wire Tube Information:

Normal construction of slot tubes allows for flow out to in filtration. However, flow-in -to-out constructions are also possible.

This construction can also be used when the slot tube is used as support tube for another filter medium, so that only the wedge is in contact with the medium to increase the open area. It is can be always found in filtration solution.

VARIABLE SLOT OPENING

For special purposes variable slot openings are possible for all diameters.

CONTINUOUS CYLINDERS

By using a lot of support profiles, an axial slot can be obtained. These filter elements are called continuous cylinders.

Reversed Profile Wire Slotted Wedge Wire Tube Normal Sizes:

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

Type of end connection

29,38,57,63,76,89,108,

150,168,320,600 etc

500,1000,2000 etc

0.05,0.1,0.25,0.5,1.0 etc

Welded rings, male/female threaded coupling,

flange,closed up and so on

Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm.

Reversed Profile Wire Slotted Wedge Wire Tube Characteristis:

Custom Designed

High Strength

Drilled Hole

Machine Slot

Wedge wire

Increased open area

Better Fiber retention

Increased effluent clarity

Kinds of materials

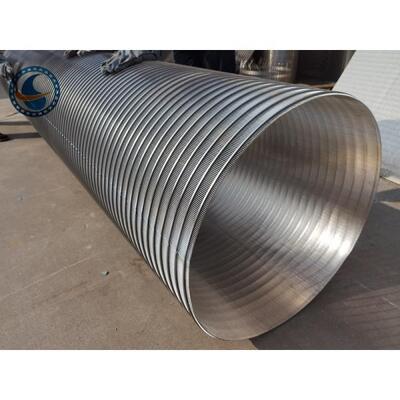

Reversed Profile Slotted Wedge Wire Pipe Stainless Steel 304 0

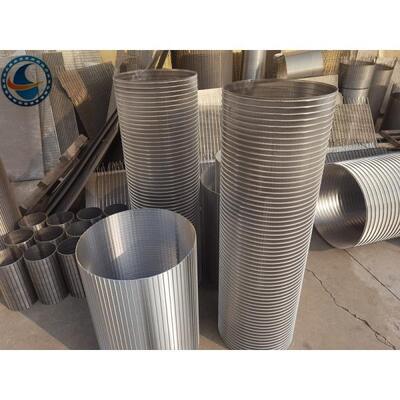

Reversed Profile Slotted Wedge Wire Pipe Stainless Steel 304 1
