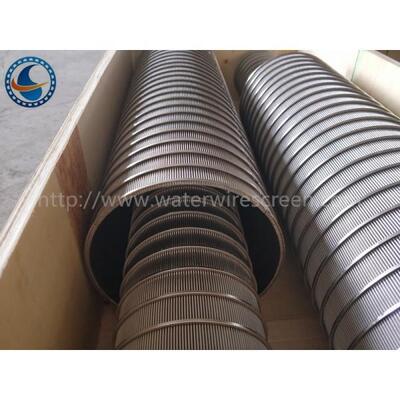

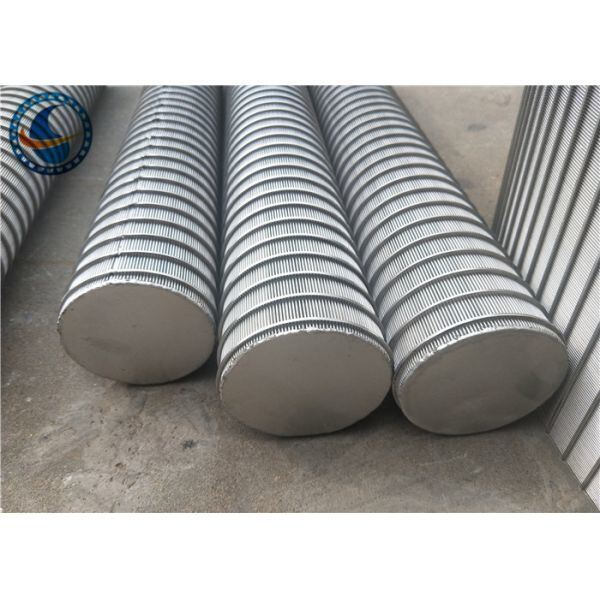

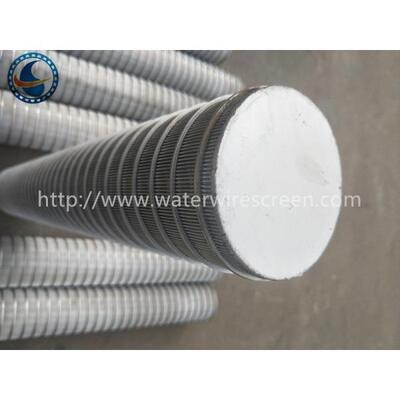

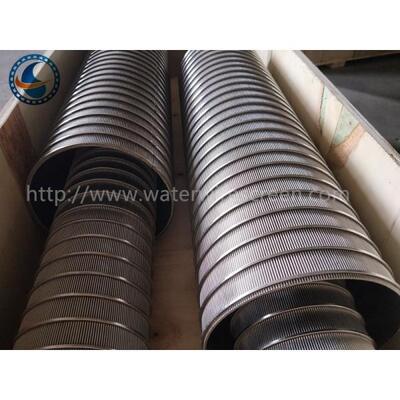

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends



Wedge Wire Screen Introduction :



Material:stainless steel 201, 205, 304, 316L, 321 etc

Diameter:29-1300mm

Slot: 0.05-100mm

Thickness: 4-10mm



Wedge Wire Screen Normal Sizes

Material	SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc
Length	Up to 4000mm
Inner Diameter	60-1300mm
Slot / Gap	25 micron to 2000 micron (Tolerance:+-5 micron)
Wedge Wire(mm)	1x2	1.2x2	1.5x2	2x3	2x3.5	3x4.6	3x5
Support Rod (mm)	2x3	2x3	2x3	2x3	3*4.6 3*5 3*6	3x4.6 3x5 3x6	3x5 3x6
Ends	With Welded rings, Flange etc
Filter Type	From inside to outside
Reinforce	With or without
Note	All sizes are all customized, according to your requirement





























Reverse Wedge Wire Screen Application:

Architecture & Construction

Food & Beverage Screens

OEM Screen Components

Refining & Petrochemical

Waste Water Treatment

Coal & Mine

Chemical industry

Pharmacy

Food and beverage

Metallurgy

Coal mining

Environmental protectio



Stainless Steel Reverse Wedge Wire Screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.



Reverse Wedge Wire Screen Filter type:



From inside to outside. Wire, Inside; Support rod, Outside.

1. Wire is the length of the screen pipe;

2. Support rod is the length of the screen pipe.



The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
