Name: AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 89mm
Price: 80 USD
Availability: InStock

Home Products Downhole Slotted Tube

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	HengYuan
Certification:	ISO9001-2008
Model Number:	89mm

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	USD 80/pc
Packaging Details:	wooden boxes or customized.
Delivery Time:	7-10 days or based on the quantity
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2000 pcs/month

Contact Now

Detailed Product Description

Features:	Non-clogging	Name:	Profile Wire Downhole Slotted Tube For Geothermal Wells
Material:	AISI 304	O.D:	89mm
Slot:	0.25mm	Profile Wire:	1.5*2mm VEE Wire
Support Rod:	2*3mm VEE Wire	Technique:	All Welding/ Electric Welding
Application:	Geothermal Wells	Ends:	Male/female Threaded
Highlight:	downhole slotted tube , 304 downhole slotted tube , OD89mm downhole slotted tube

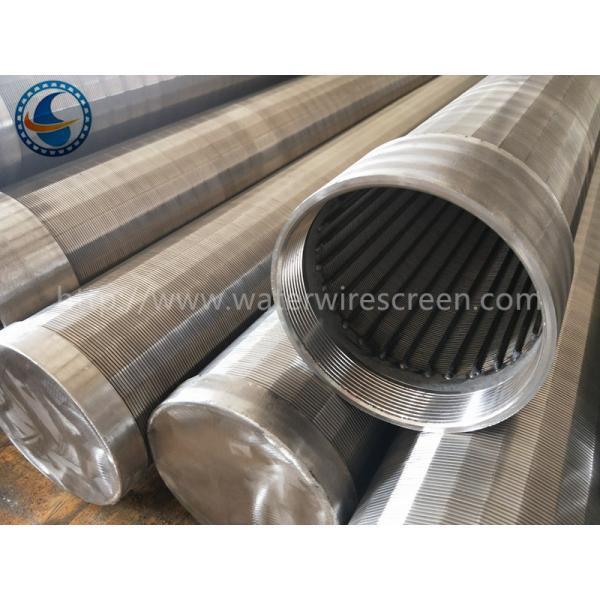

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells

Profile Wire Downhole Slotted Tube, Is the Standard Construction features

external circumferential wire and internal support rods.

Profile Wire Downhole Slotted Tube also be named: Wire wrap screen, Wire wrapped screen pipe, Johnson Screen, Spiral screen tube, Welded wedge wire screen, Reversed slot screen, Continuous slot pre-pack, Water filter, Screen cylinders,Wound Screen, Stainless steel slot tube, Strainer pipe, Continuous slot wire wrap well screens, Stainless steel wire screen, Wire wrapped liner, Slot wire screen tube, Conical well screen, Suction strainers, Strainer screen wide slit screens, Well point screens, Oil screen tube.

Profile Wire Downhole Slotted Tube Advantages:

Non-clogging capabilities

Self supporting

High abreaction resistance

Large open area

Better sand filtration

Energy saving

Lowest possible cost

Long using life

Maximum flow capacity

Profile Wire Downhole Slotted Tube Normal Sizes:

Name	Profile Wire Downhole Slotted Tube For Geothermal Wells
Material	SS304, 316L,Deplex 2205, 2507 etc.
Diameter	29-1000mm
Length	1000-4000mm
Slot opening	0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 1.0 mm etc
OD(mm)	29,32,38,40,42,45,48,50,53,57,58,60,65,68,70,76,80,82,89,100, 108,120,133,159,196,219,240,273,325,350,400,450,480,500,550,750,800,1000

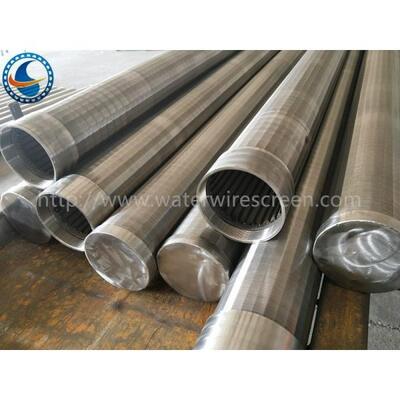

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells 0

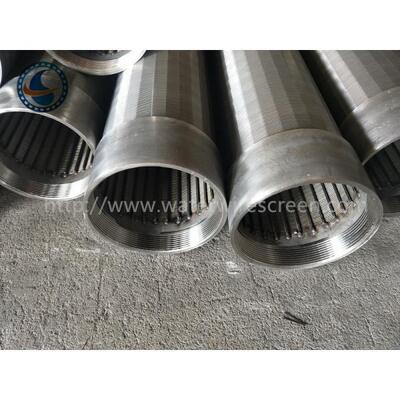

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells 1

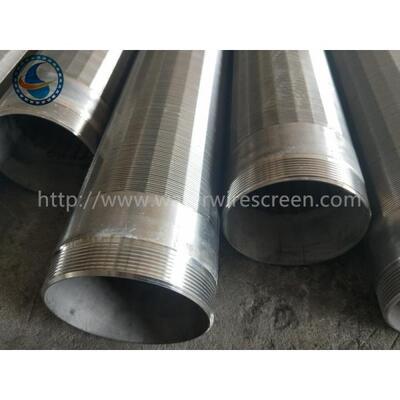

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells 2

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells 3

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells 4

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells 5

AISI 304 Profile Wire Downhole Slotted Tube For Geothermal Wells 6
