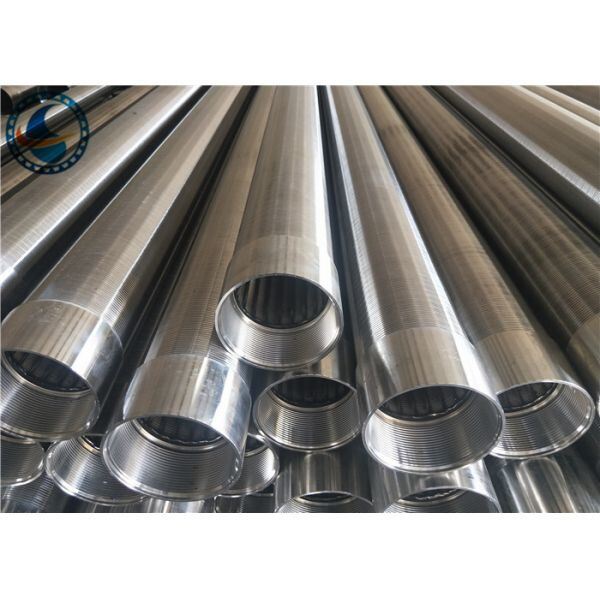

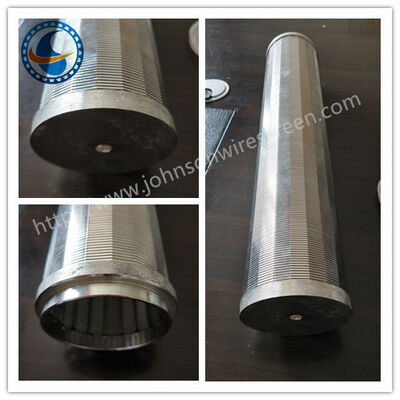

250 Micron Downhole Slotted Tube / Johnson Stainless Steel Screen With ISO / CIQ / SGS / CE Certificate
Wedge Wire Screen Mesh Introduction :
Wedge wire screen mesh, also be named Johnson Screen Pipe Wedge Wire Screen For Pulp Filter, Johnson screen, include the wire Screen tube, wedge wire screen cylinder, wedge wire screen tube, Filter Candle, Drum screen, profile wire screen cylinder and so on.
1. The filter rating is 0.05mm-100mm.
2. Main material is AISI304, AISI316, AISI316L,Hastelloy etc.
3. Connectors and the ending according to client’s request
4. Hengyuan also produce according clients’ request, design the screen according the usage.
Wedge Wire Screen Mesh Parameter selection table :
| Outside Diameter (mm) | Length (mm) | Slot (mm) | Styles of connection (mm) |
| 29,38,42,57,63,76,89,108,150, 168,320,600,900,985 | 1000,2000,3000,4000 | 0.05,0.1,0.25,0.5,1.0,2.0 | Welded rings, male/female threaded coupling,flange,closed up |
| Explanation | Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 29mm- ￠ 1000mm, the length from the 100mm-4000mm series screen pipe |
