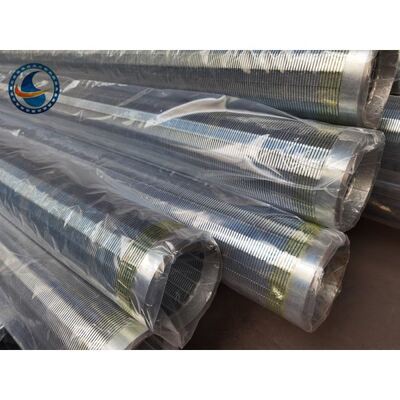

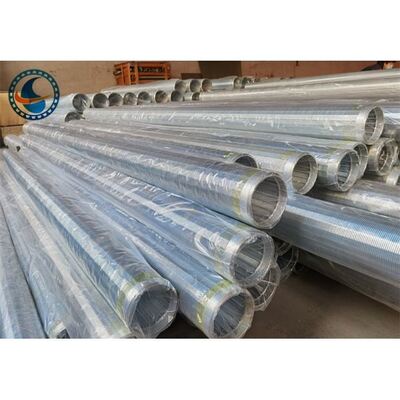

3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized

3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized
3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized 3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized 3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized 3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized

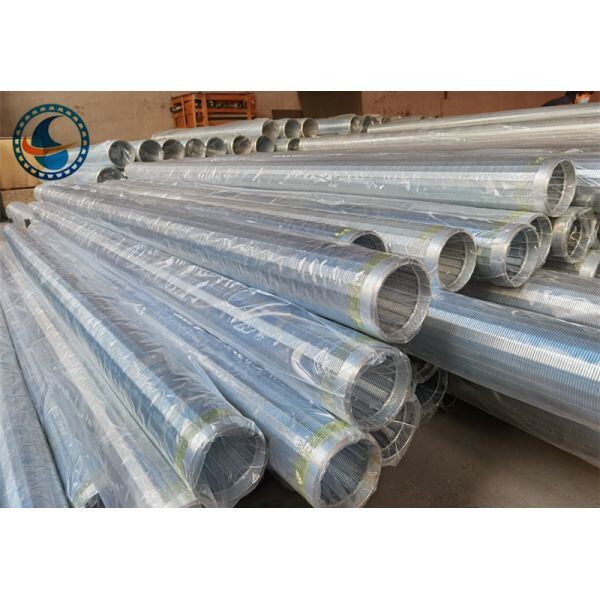

Large Image :  3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized

Product Details:
Place of Origin: Hengshui city,Hebei,China
Brand Name: Heng Yuan
Certification: ISO,CIQ,CE, FORM E etc
Model Number: HY121703
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000pcs/Month
Contact Now
Detailed Product Description
Name: Johnson Wire Screens Material: Low Carbon Galvanized
Length: 2900mm Diameter: 88.9mm
Slot Size: 1.0mm Wire: 2.2*3.5mm Vee-Wire
Support Rod: ø3.8mm Round Wire End Connection: Bevel Welded Rings
Hole Shape: Wedge,v-shape Feature: Corrosion Resistance
Size: Can Be Customized Welded Type: Full Welded
Highlight:

3-1/2" v wire screen pipe

,

galvanized v wire screen pipe

,

low carbon galvanized water wire screen

3-1/2" Low Carbon Galvanized Johnson Wire Screens For Sand Control



Johnson Wire Screen,also called wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, slotted screen.
Johnson Wire Screens are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.



Johnson Wire Screen Sizes:



  • Material: stainless steel wire or galvanized wire.
  • Surface profile: triangle wire.
  • Support profile: triangle wire, round bar and wedge wire.
  • Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
  • Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
  • Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
  • Maximum collapse strength: 150 bar.
  • Maximum tensile strength:40 tons.
  • Connection type: Bevel welded rings;  male/female threaded coupling.
  • Wire Size: 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm, 4*7mm etc. Also can make other sizes as your request.
  • Support rods size: ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.



Johnson Wire Screen Regular Specification:



SIZE
(INCH)

O.D
(MM)

SLOT
(MM)

LENGTH
(M)

COLLAPSE
STRENGTH(BAR)

TENSILE
STRENGTH(TON)

WRAP WIRE
(WIDTH*HEIGHT)(MM)

RODS
(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 4.0MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.2MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.2MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.8MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.2MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.2MM/59



Johnson Wire Screens Features:



  • Can filtration 20 micron particles.
  • Wide ranges of sizes and end types.
  • Large open areas for high filtration efficiency.
  • Non-clogging and plugging performance.
  • Stainless steel materials OR Low carbon galvanized materials for long service life.
  • Easy cleaned and low maintenance.

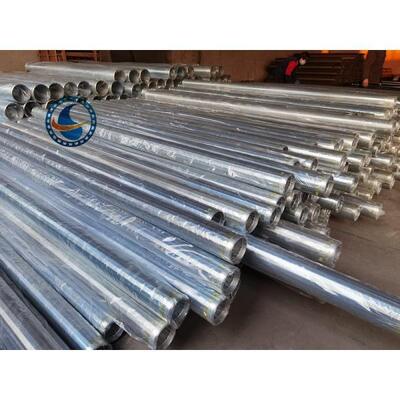

    3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized 03-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized 1

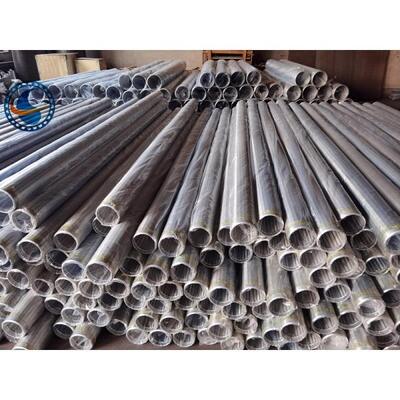

3-1/2" Slot 20 V Wire Screen Pipe Low Carbon Galvanized 2
