4-1/2" Slot 40 Wire Wrapped Pipe , Well Screen Pipe Corrosion Resistance

4-1/2" Low Carbon Galvanized Water Wire Screens For Sand Control

Water wire screen,also called wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, slotted screen.
Water wire screens are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.


Specifications of Water Wire Screen:

• Material: stainless steel wire or galvanized wire.
• Surface profile: triangle wire.
• Support profile: triangle wire, round bar and wedge wire.
• Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
• Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
• Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.

Water Wire Screen Regular Specification:

Water Wire Screens Advantages:


1. Its uniform filter slots and high precision ensure the effective retention of filter medium.
2. Water wire screen has a larger circulation area compared with other screens.
3. The tiny gaps between wedge wires form a smooth wedge-shaped cross section, which makes sure no dead ends, excellent resistance to block and easy to backwash (blow wash).
4. Water wire screen has high mechanical strength and can withstand high pressure drop.
5. Water wire screen is made of superior stainless steel wires (Such as: AISI 304 and 316L) AND  low carbon galvanized with strong corrosion resistance and high temperature resistance performances and can totally adapt to various harsh environment.
6. Water wire screen adapts to different forms of fluid direction with high strength, large flow and high pressure resistance performance.
7. Water wire screen maintains stable filtration accuracy and can be reused repeatedly and work reliably.

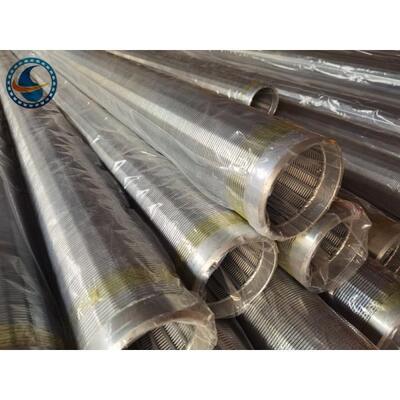

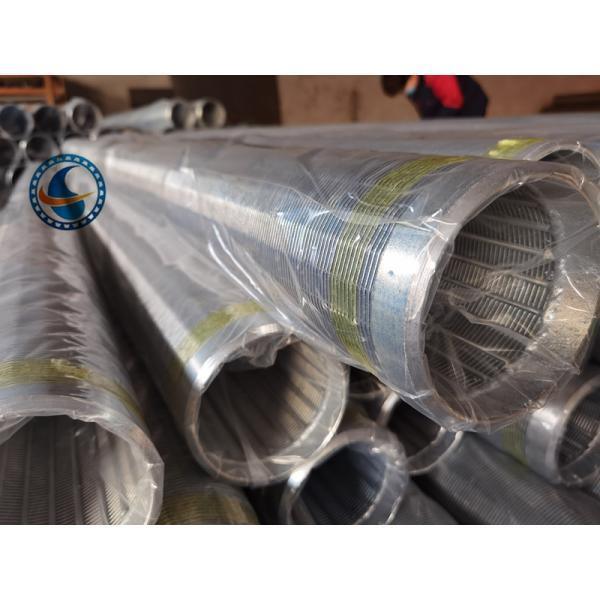

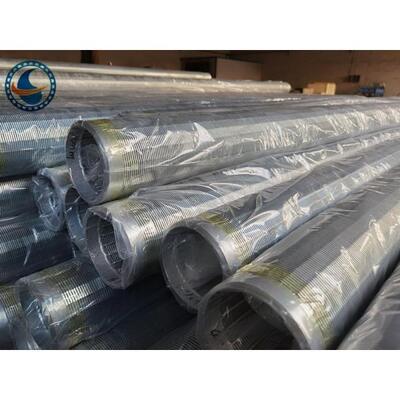

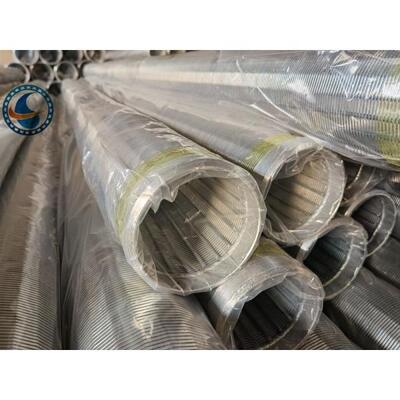

Water Wire Screen Pictures:
