OD 89 mm Slot 40 1.0 mm Stainless steel Johnson Slot Screen Tube

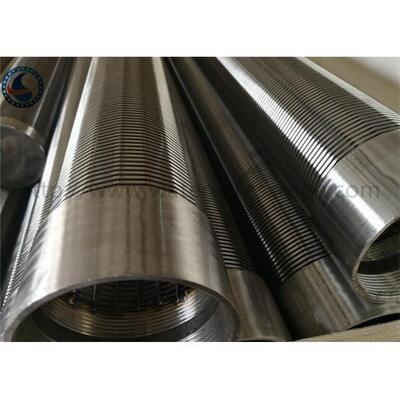

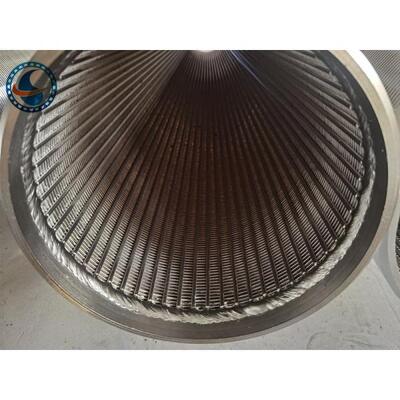

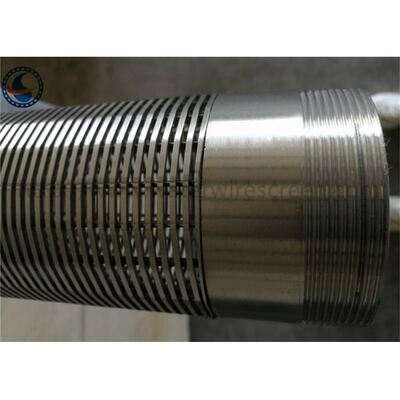

Johnson Slot Screen Tube is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
| name | OD 89 mm Slot 40 1.0 mm Stainless steel Johnson Slot Screen Tube |
| O.D | 89 mm |
| length | 2.9 m |
| slot size | 1.0 mm |
| material | stainless steel 304/ 316L / 201/ 321/904L/Ti |
| Application | FIlter equipment / water well filter / sand control / |
| other name | johnson filter , johnson screen pipe, v wire wrapped screen |
| customization | we support customization |
Use:Johnson Slot Screen Tube can be used as below:
1. Well sand control filter
2. Widely used in vairous kinds of medium filtering
3. As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
4. The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
5. The organic solution recycling filter
Advantages:
1. Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.
