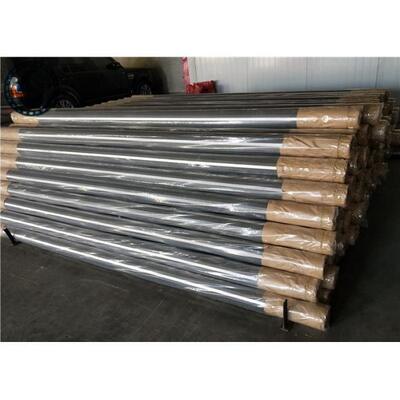

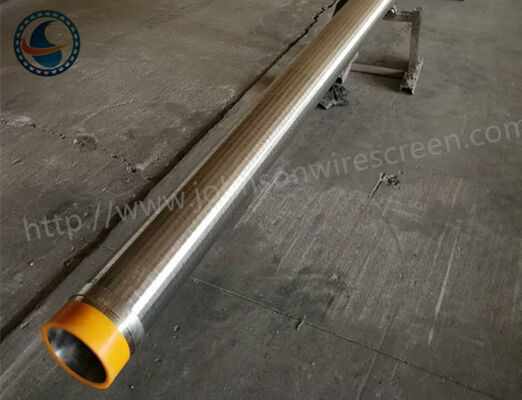

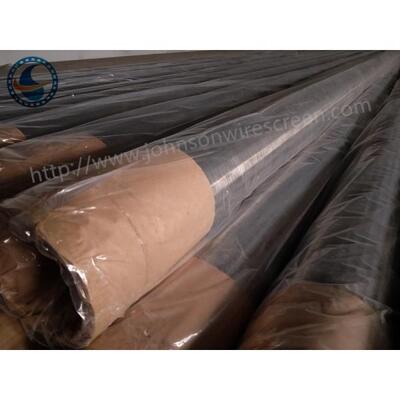

Stainless Steel 304 Water Wire Screen , Anti Corrosion Water Well Screen

Large Image : Stainless Steel 304 Water Wire Screen , Anti Corrosion Water Well Screen

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY004

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,800 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Low Carbon Steel Galvanized	Grade:	Q195
Slot Size:	1.0 Mm	Diameter:	3 "
Length:	2900 Mm	End Connection:	Welded Rings
Package:	Woden Box,Container
Highlight:	water well screen , johnson screen pipe

Stainless Steel 304 Grade Water Well Screen Diameter 168mm 219mm

Stainless Steel 304 Grade Water Well Screen Description:

Product Name	Profile V Wire Water Well Screen
Material	Stainless Steel
Grade	321
O.D	273 mm
Size	10 "
Slot size	1.0 mm
Length	5.8 m
End connection	Thread Couplings ( male / female )
Wire size	118 #
Support rod	140 #
Wire shape	V shape

Stainless Steel 304 Grade Water Well Screen Regular Specifications:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59
