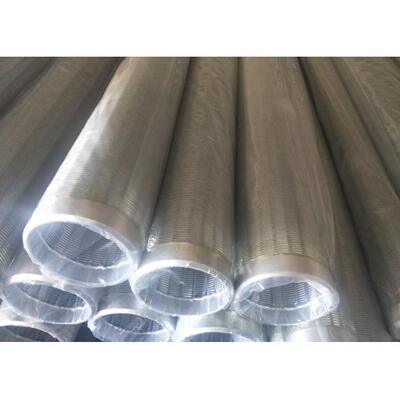

Rust Proof Water Well Screen Pipe For Reducing Well Entry Surface Erosion

Large Image : Rust Proof Water Well Screen Pipe For Reducing Well Entry Surface Erosion

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	219mm

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation

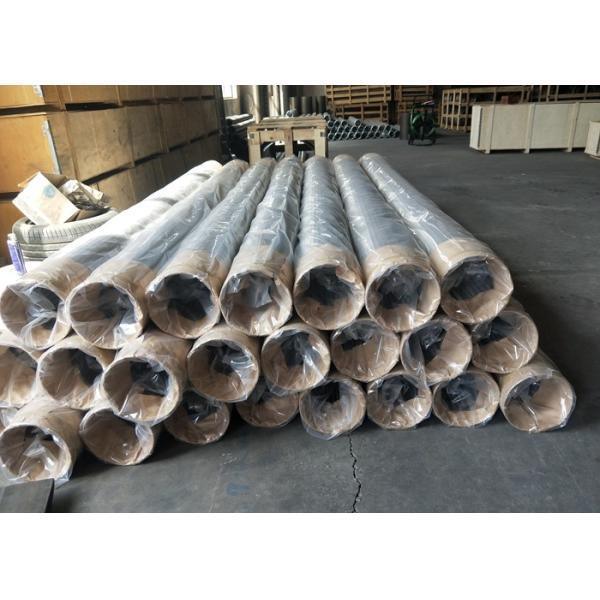

Packaging Details:	Moister-Barrier with each piece,800 pcs per 20 ft container
Delivery Time:	15-30 Days, Due to the Quantity
Payment Terms:	L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	SS 304, SS304l, SS316L Etc
Slot Size:	0.25mm, 0.5mm, 0.63mm, 0.75mm, 1.0 Mm, 1.5mm	Diameter:	3 ", 4", 6", 8", 10", 12", 14", 16"
Length:	2900 Mm Or 5800mm To Fit Container	End Connection:	Welded Rings Or Male/ Female Threaded
Package:	Woden Box,Or Container
Highlight:	water well screen , johnson screen pipe

304 Water Well Screen Pipe , Water Wire Screen Substitute For Johnson Wound Screen Convenient Operation

Stainless Steel 304 Water Well Screen Pipe Description:

Product Name	Stainless Steel 304 Water Well Screen, Johnson Wound Screen
Material	Stainless Steel
Grade	304, 304L, 316L,321 etc.
O.D	114mm, 168mm, 219mm, 273 mm,325mm, 356mm, 426mm
Size	4" , 6", 8", 10 ", 12", 14", 16"
Slot size	0.5mm, 0.63mm, 0.75mm, 1.0 mm, 1.5mm
Length	2.9m or 5.8 m to fit container
End connection	Thread Couplings ( male / female ) OR Welded Rings
Wire size	118 # etc.
Support rod	140 # etc. Round Wire
Wire shape	Vee shaped Wire

Stainless Steel 304 Water Well Screen Pipe Parameter selection table:

Special specification can be made according to your need!

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Stainless Steel 304 Water Well Screen Pipe Advantages:

When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings.

The benefits of which will :

• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.

Rust Proof Water Well Screen Pipe For Reducing Well Entry Surface Erosion 0
