SS 304L High Strength Continuous Slot Sand Control Water Wire Screen

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO, CIQ, CE, FORM E
Model Number:	HY005

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304L
Slot Size:	1.0 Mm	Diameter:	10-3/4 ", 273mm
Length:	5.8M	End Connection:	Wleded Rings
Wire:	3*6mm	Support Rod:	ø5.0mm Round Wire
Highlight:	water well screen , sand control screens

SS 304L High Strength Continuous Slot Sand Control Wire Screen For Water Well

Product Description:

High Strength Continuous Slot Johnson Sand Control Water Well Drill Screen which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.

Specificarion:

Material	Stainless steel
Grade	304L
O.D	273mm, also can be 63mm 89mm 117mm 168mm 219mm 325mm 377mm 426mm
Size	10", also can be 2" 3" 4" 5" 6" 8" 9" 12" 14" 16"
Length	5.8 m ,also can be 2.9 m to fit container
Solt size	1.0 mm
End connection	Welded rings
Wire size	118#, Also can be 63# 93 # etc
Support rod	ø5.0mm, Also can be ø2.8-6.0mm
Wire shape	Vee shaped

Characteristic:

High Strength Continuous Slot Johnson Sand Control Water Well Drill Screen have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.

Regular Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Use:

water well

water supply systems

Refining & petrochemical

Filter equipment

Sand control

Pictures:

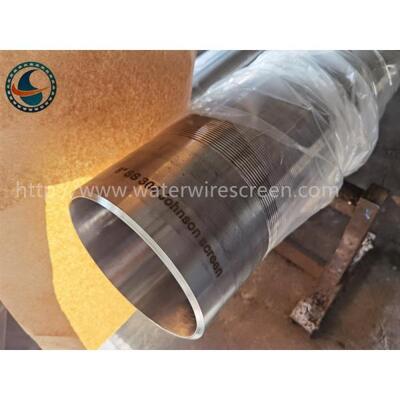

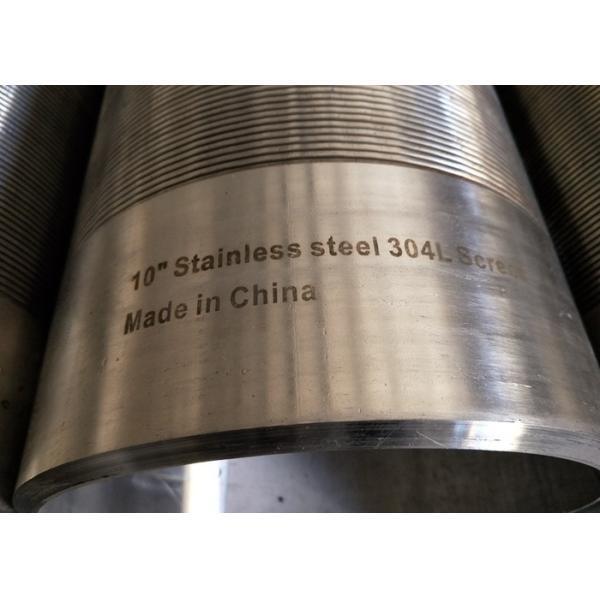

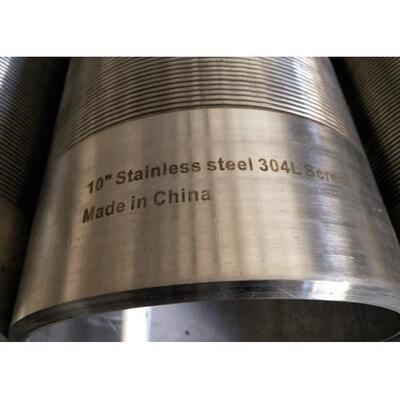

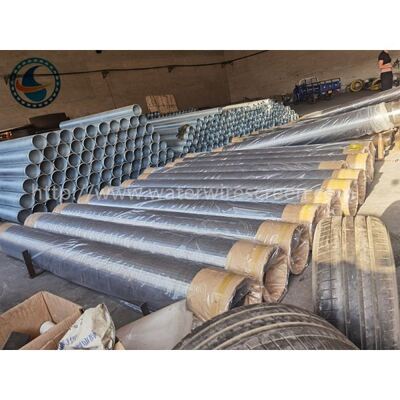

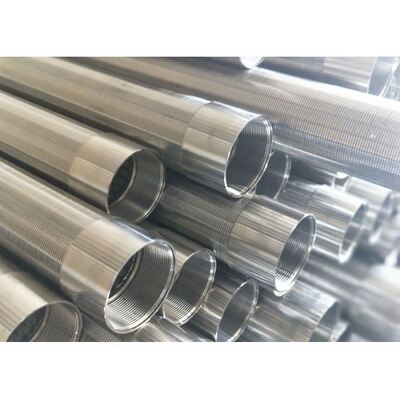

SS 304L High Strength Continuous Slot Sand Control Water Wire Screen 0

SS 304L High Strength Continuous Slot Sand Control Water Wire Screen 2
