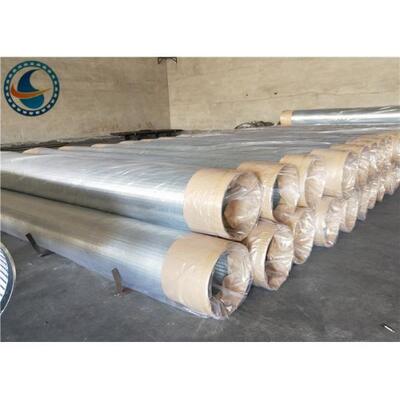

Name: 5800mm Length Water Wire Screen Q195 / Q235 Galvanized Low Carbon Steel Made
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 273mm
Availability: InStock

Home Products Water Wire Screen

5800mm Length Water Wire Screen Q195 / Q235 Galvanized Low Carbon Steel Made

Product Details:

Place of Origin:	Anping, Hebei, China
Brand Name:	Heng Yuan
Certification:	ISO, CIQ ,SGS, CE
Model Number:	273mm

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Plastic film ,144 pcs per 40 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs / Month

Contact Now

Detailed Product Description

Material:	Galvanized Low Carbon Steel	Grade:	Q195, Q235
Slot Size:	0.5mm, 0.75mm, 1.0 Mm	Diameter:	10-3/4 "
Length:	5800mm	End Connection:	Welded Rings
Package:	Plastic Film In Container	Weight:	35KG/ Meter
Wrap Wire:	34.6mm, 35mm, 36mm, 37mm	Support Rod:	Round Wire, ø3.0-5.0mm
Highlight:	water well screen , johnson screen pipe

5800mm Length Water Wire Screen,Well Casing Screen , Industrial Water Well Sand Screen

Water Wire Screen Product Description:

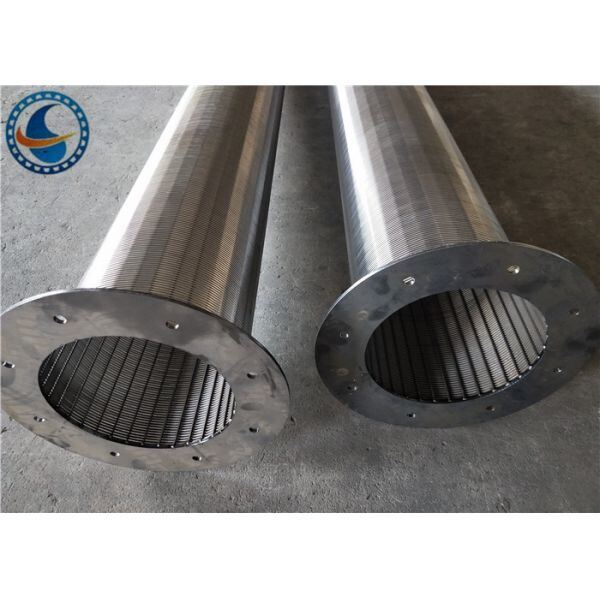

10 " Wound Well Screen is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

Water Wire Screen Specification:

Material	Low carbon steel galvanized
Grade	Q195, Q235
O.D	273 mm
Size	10-3/4 "
Slot size	0.5mm, 0.75mm, 1.0 mm
Length	5.8m
End connection	Welded rings
Wire size	34.6mm, 35mm, 36mm, 37mm
Support rod	round wire, ø3.0-5.0mm
No. of support rod	55 PCS, 64 PCS

Weight

31-38KG / meter

Special specification can be made according to your drawing!

Water Wire Screen Advantages:

1. Adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filtration and more effective

2. Wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are guaranteed.

3. Arrangement of the longitudinal support rods and the successive slots provide higher compressive property
